17 19 Inch Twin Disc Cutter TBM Parts Rock Cutting Tools Used To Break Rocks

Product Details:

Product Name:  17 Inch Twin Disc Cutter, 19 Inch Twin Disc Cutter

Place of Origin:  China

Brand Name:      Litian

Category:           TBM Disc Cutter

Product Description

Litian produces and supplies high quality center disc cutters. For larger TBMs, 17 inch twin disc cutters and 19 inch twin disc cutters are popular. We have advanced disk cutter manufacturing and processing technology and strict assembly process specifications to ensure that the rock cutting tools can be well adapted to the surrounding rock geology and have good stability and reliability in different formations. Litian 17 inch twin disc cutter, 19 inch twin disc cutter are installed in the middle of the cutter head of tunnel boring machine, which is a common tool used to break rocks and can effectively break complex formations and hard rock.


We can provide all kinds or disc cutters for TBM, MTBM, AVN, Pipe Jacking Machine...

Cutter Type: Single Disc Cutter, Double Disc Cutter, Triple Disc Cutter, Twin Disc Cutter;

Diameter: 6" ~ 20" (150mm ~ 508mm);

Bearing Capacity: 4 ~ 42 tonnes;

Structure: Monoblock, Assembly.

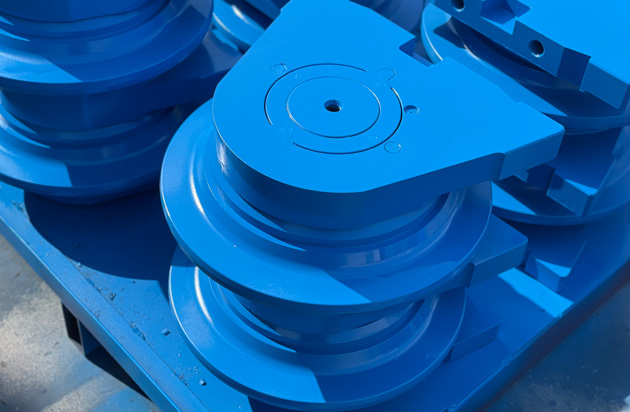

17 Inch Twin Disc Cutter Specification

Product

17 Inch Twin Disc Cutter

Diameter

[mm]432MM     [in] 17"

Bearing Capacity

45 Tonne

Optional Cutter ring

Standard Cutter Ring, Anti-wear Cutter Ring, HD Cutter Ring, TCI Cutter Ring

Material

Mould steel

Fit Machine

Tunnel boring machine, shield machine...

Package

Plywood case

OEM & ODM

Acceptable

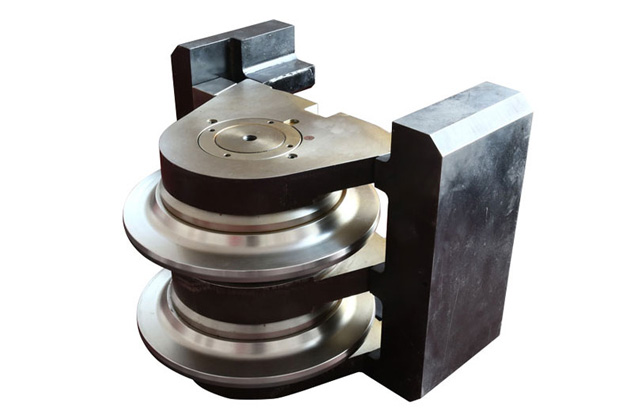

19 Inch Twin Disc Cutter Specification

Product

19 Inch Twin Disc Cutter

Diameter

[mm]483MM     [in] 19"

Bearing Capacity

42 Tonne

Optional Cutter ring

Standard Cutter Ring, Anti-wear Cutter Ring, HD Cutter Ring, TCI Cutter Ring

Material

Mould steel

Fit Machine

TBM

Structure

Assembly

OEM & ODM

Acceptable

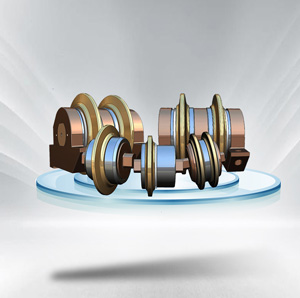

Know more about Litian TBM Disc Cutters

Litian TBM Disc Cutters click picture
