Product Details：
Product Name: MF-T45-D46-3660 Drill Rod
Place of Origin: China
Brand Name: LITIAN
Certification: ISO9001:2015
Model No.: MF-T45-D46-3660
Category: Drill Rod
T45 speed drill rod, also known as MF drill rod, is mainly used for bench drilling, underground mining and long hole rock drilling. T45 speed drill rod can be directly and tightly connected with the shank adapter without using a coupling sleeve, which is very convenient and can reduce the overall cost. As a surface and underground mining tool, the T45 MF drill rod we offered, is manufactured with high-grade steel and a cutting-edge heat treatment process, which makes an ideal balance between flexibility and abrasion resistance.
Litian T45 12inch speed drill rod is a very popular underground drill rod, it has an excellent performance in wear resistance, penetration rate, service life and so on.
Parameter
Product | MF-T45-D46-3660 Drill Rod |
Length | [mm]3660MM [ft] 12' |
Diameter | [mm]46MM [in] 1 3/4" |
Net Weight | ～41kg |
Application | Bench drilling，Underground production and long hole drilling |
Model No. | MF-T45-D46-3660 |
Similar Parts No. | 7325-7737-70 90515313 90510733 |

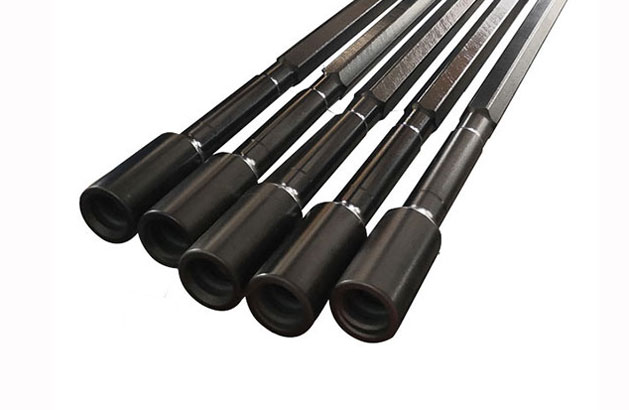

MF rod, Round 46, T45 - T45
Length | Diameter | Weight | Model No. | Part No. | Similar Parts No. | ||
[mm] | [ft-in] | [mm] | [in] | [kg] | |||
1220 | 4' | 46 | 1 3/4″ | 14 | MF-T45-D46-1220 | 623-7912-202 | 7325-7712C-20 |
1525 | 5' | 46 | 1 3/4″ | 18 | MF-T45-D46-1525 | 623-7915-202 | 7325-7715C-20 90510730 |
1830 | 6' | 46 | 1 3/4″ | 21 | MF-T45-D46-1830 | 623-7918-202 | 7325-7718C-20 |
3050 | 10' | 46 | 1 3/4″ | 35 | MF-T45-D46-3050 | 623-7930-202 | 7325-7731-70 90515567 |
3660 | 12' | 46 | 1 3/4″ | 41 | MF-T45-D46-3660 | 623-7937-202 | 7325-7737-70 90515313 90510730 |
4265 | 14' | 46 | 1 3/4″ | 48 | MF-T45-D46-4265 | 623-7943-202 | 7325-7743-70 90515316 |
6095 | 20' | 46 | 1 3/4″ | 69 | MF-T45-D46-6095 | 623-7961-202 | 7325-7761-70 |
click picture
