Product Details：

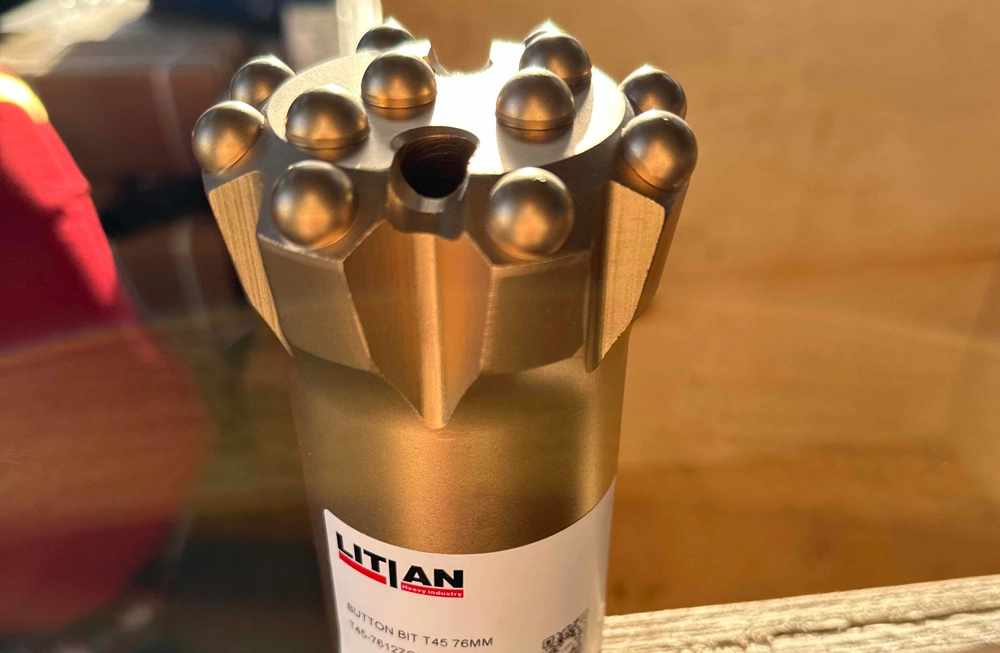

Product Name: T45 76mm Flat Face Drill Bit
Place of Origin: China
Brand Name: LITIAN
Certification: ISO9001:2015
Model No.: T45-7613ZCA
Category: Button Bit
Top hammer flat face drill bit is a universal button bit that can be used in all rock conditions. When the flat face drill bit is configured with big cemented carbides, it can effectively improve the wear resistance and impact resistance, and it is mostly used for rocks with hard or abrasive conditions, such as granite, basalt and hard limestone. Flat face drill bits are the best choice for drilling in abrasive rock formations.

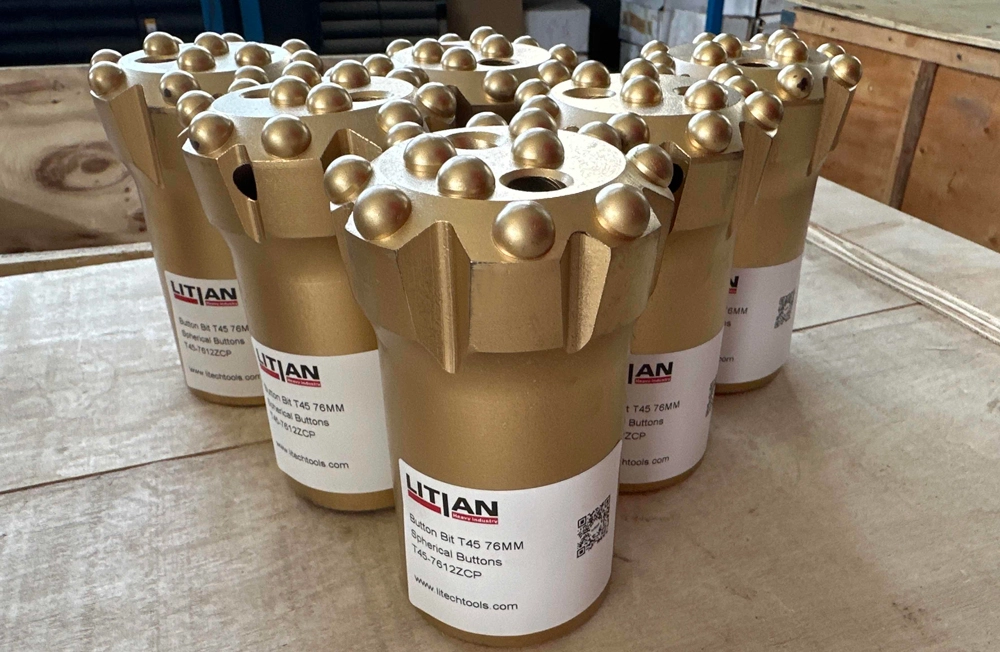

The T45 76MM flat face drill bit is a very commonly used threaded button bit, which can be widely used in bench drilling, underground production and long hole drilling. As a rock drilling consumables manufacturing vendor, a flat face drill bit factory, we can also provide and customize various types of T45 drill bits with flat-face for you.
Parameters：
Product | T45-76mm Button bit |
Diameter | [mm]76MM [in] 3" |
Buttons | Gauge: 8×12mm, Front: 4×11mm,1×11mm |
Flushing Hole Qty | Gauge: -, Front: 4 |
Net Weight | ～2.6kg |
Button Shape | Ballistic, Spherical, Composite buttons |
Face Design | Flat face |
Model No. | T45-7613ZCA |
Quick Details：
Category: | Top Hammer Drilling Bit |
Material: | Tugestun Carbide, Structural Alloy Steel |
Supplier: | Chinese Manufacturer |
Fit Machine: | Rock Drilling Rig |
Package: | Carton, Plywood case |
MOQ: | 1 Piece |
Lead Time: | 3-30 Days |
Here are more china flat face drill bits for rock or stone on sale!
| Appearance | Diameter | Buttons | Flushing Hole | Weight | Model No. | |||
| [mm] | [in] | Gauge | Front | Side | Front | [Kg] | ||
| 76 | 3" | 8 × 12 | 4 × 11 | 2 | 2 | 2.6 | T45-7612ZCP |
| 76 | 3" | 8 × 12 | 4 × 12 | 1 | 2 | 2.4 | T45-7612ZCP | |
| 89 | 3 1/2" | 7 × 13 | 5 × 12 | 1 | 3 | 3.5 | T45-8912ZCP | |
| 89 | 3 1/2" | 8 × 13 | 5 × 12 | 2 | 2 | 3.7 | T45-8913ZCP | |
| 89 | 3 1/2" | 8 × 13 | 6 × 13 | - | 2 | 3.7 | T45-8914ZCP | |
| 102 | 4" | 8 × 14 | 7 × 12 | 2 | 2 | 5 | T45-10215ZCP | |
| 102 | 4" | 9 × 12 | 6 × 12 | - | 2 | 5 | T45-10215ZCP | |
| 115 | 4 1/2" | 9 × 14 | 7 × 13 | 1 | 3 | 6.8 | T45-11516ZCP | |
| 115 | 4 1/2" | 8 × 16 | 7 × 13 | 2 | 2 | 6.8 | T45-11515ZCP | |
 | 76 | 3" | 8 × 12 | 4 × 11 | 2 | 2 | 2.2 | T45-7612YFP |
| 89 | 3 1/2" | 8 × 13 | 5 × 12 | 2 | 2 | 5.2 | T45-8913YFP | |
| 102 | 4" | 9 × 12 | 6 × 12 | - | 3 | 6.5 | T45-10215YFP | |
| 115 | 4 1/2" | 9 × 14 | 7 × 13 | - | 3 | 10 | T45-11516YFP | |
| 115 | 4 1/2" | 9 × 14 | 6 × 13 | - | 3 | 10 | T45-11515YFP | |
 | 76 | 3" | 8 × 13 | 4 × 11 | 1 | 4 | 3.5 | T45-7613YLA |
| 89 | 3 1/2" | 8 × 12 | 4 × 12 | 1 | 4 | 4.7 | T45-8913YLA | |
click picture
