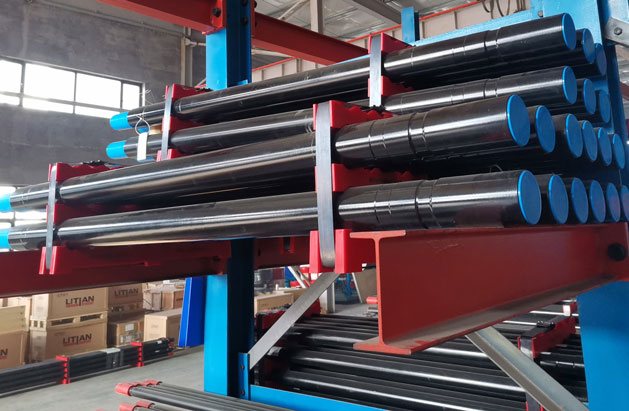

What Is A Drill Rod

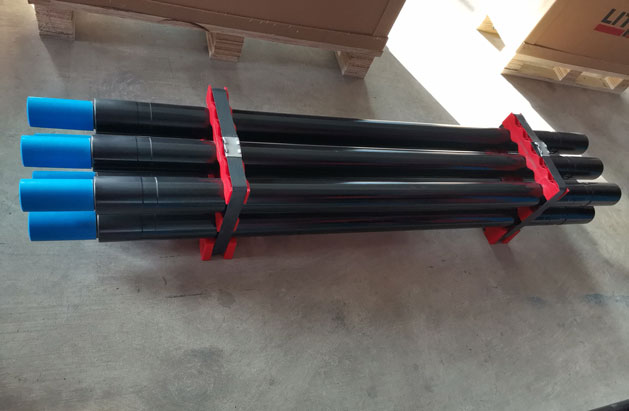

Drill Rod Specifications

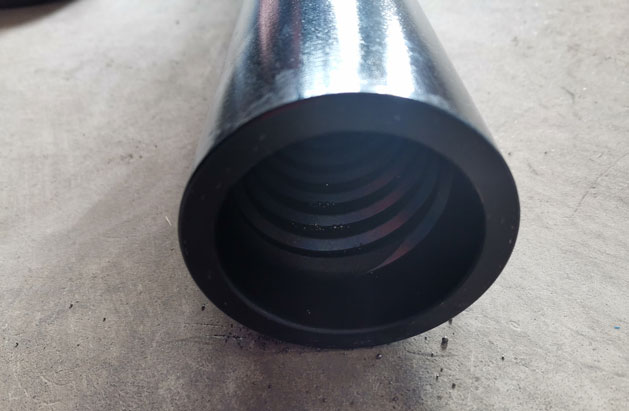

Drilling Rod Price

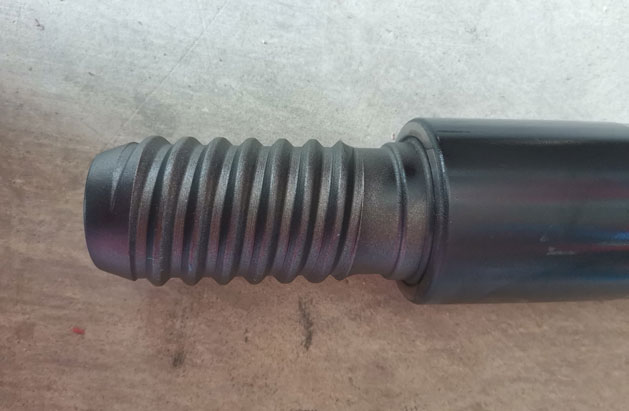

Borehole Drilling Rods
What Is A Drill Rod
Drill Rod Specifications
Drilling Rod Price
Borehole Drilling Rods

Drill Tube & Guide Tube

In top hammer drilling, guide tube and drill tube are mainly used for surface bench drilling and underground long hole drilling. We can provide T38 guide tube, T45 guide tube, T51 guide tube, ST58 drill tube, ST68 drill tube, GT60 drill tube...

Specification Of Drill Tube & Guide Tube

T38 Guide Tube

Length

Diameter

Weight

Model No.

Part No.


[mm]

[ft-in]

[mm]

[in]

[kg]











T38 Guide Tube

1830

6'

56

2' 13/64

24

T38-D56-1830

622-9018-202

Guide tube, Round 56, T38 - T38

3660

12'

56

2' 13/64

48

T38-D56-3660

622-9037-202


T45 Guide Tube

Length

Diameter

Weight

Model No.

Part No.


[mm]

[ft-in]

[mm]

[in]

[kg]











T45 Guide Tube

1830

6'

63

2 31/64

24

T45-D63-1830

623-9218-202

Guide tube, Round 63, T45 - T45

3660

12'

63

31/64

46

T45-D63-3660

623-9237-202









Guide tube, Round 76, T45 - T45

3660

12'

76

3″

78

T45-D76-3660

623-9337-202


T51 Guide Tube

Length

Diameter

Weight

Model No.

Part No.


[mm]

[ft-in]

[mm]

[in]

[kg]











T51 Guide Tube

1830

6'

76

3″

40

T51-D76-1830

624-9418-202

Guide tube, Round 76, T51 - T51

3660

12'

76

3″

76

T51-D76-3660

624-9437-202









Guide tube, Round 87, T51 - T51

3660

12'

87

3 1/2

89

T51-D87-3660

624-9537-202


ST58 Drill Tube

Length

Diameter

Weight

Model No.

Part No.


[mm]

[ft-in]

[mm]

[in]

[kg]











ST58 Drill Tube

1525

5'

76

3″

33

ST58-DN76-1525

641-10315-202

Drill tube, Round 76, ST58 - ST58

1830

6'

76

3″

41

ST58-DN76-1830

641-10318-202


ST68 Drill Tube

Length

Diameter

Weight

Model No.

Part No.


[mm]

[ft-in]

[mm]

[in]

[kg]











ST68 Drill Tube

1525

5'

87

3 1/2

40

ST68-DN87-1525

642-10415-202

Drill tube, Round 87, ST68 - ST68

1830

6'

87

3 1/2

48

ST68-DN87-1830

642-10418-202


GT60 Drill Tube

Length

Diameter

Weight

Model No.

Part No.


[mm]

[ft-in]

[mm]

[in]

[kg]











GT60 Drill Tube

4265

14'

87

3 1/2

104

GT60-D87-4265

661-10243-202

Drill tube, Round 87, GT60 - GT60








Can't find the drill rod you want? Please contact us! ↓
