Button Bit

Button Bit

Threaded button bits for rock drilling, a kind of top hammer rock drill bit, is mainly used with hydraulic drill rods (pneumatic drill rods) and hydraulic rock drills (or pneumatic rock drills) in top hammer drilling. Button bits rock drilling use different forms of threads to cooperate with the drill rod to perform drilling operations.

Button Bit Product Specification


Product

Top Hammer Rock Drilling Tool - Button Bit

Other Names

top hammer drill bits, threaded button bit, threaded drill bit, hard rock drilling bits, button drill bit, rock drill bits, mining drill bits

Material

Structural Alloy Steel, Tugestun Carbide

Application

Tunnelling, Mining, Quarrying, Blasting and Infrastructure Construction


Facedrilling and Bolting, Bench Drilling, Production drilling, Long hole drilling, Drifting

Thread

R25, R28, R32, R35, R38, T38, T45, T51, GT60, ST58, ST68, SR28, SR35...

Bit Type

Standard button bit, Retrac button bit, Pilot Reaming Bit, Dome reaming bit

Skirt Design

Standard skirt, Retrac skirt, Straightrac type, Heavy duty skirt

Face Design

Flat face, Drop center face, Convex face, Uni-face, Reaming type, Cross type, X type

Button Shape

Spherical buttons, Ballistic buttons, Conical buttons, Composite buttons

Head Diameter

28mm~152mm

Custom Design

Acceptable



We offer different threaded Button Bit Types including standard button bit, retrac button bit, pilot reamer bit, spherical button drill bit, ballistic button bit, flat face drill bit, drop center drill bit etc. What's more, custom design of hard rock drilling bits is supported.


Litian Top Hammer Drill Bits

Button Bits Rock Drilling Advantages


High-quality raw material

Our button rock drill bits are made of high-quality steel and cemented carbide as raw materials. After a special heat treatment process, the drilling rig drill bit has a long service life and can minimize the loss of impact energy during transmission.


Advanced button fixation technology

The drilling rig drill bit adopts advanced button fixation technology. The fixation force is uniform and it is not easy to lose buttons. At the same time, it can ensure the verticality of the drilling hole, so that the impact energy can be concentrated on the rock.


Advanced thread manufacturing process

Our drill button bits are with advanced thread manufacturing technology. Threads manufactured with precise tolerances enable the drill bit and the drill rod to be connected more tightly, and can transmit impact energy more effectively, while greatly reducing the risk of dents and fractures at the thread end, and improving overall production efficiency. In actual use, many of our thread button bits, such as R32 button bit, T38 drill bits, T45 drill bits, T51 bits are all have good performance.


Excellent rock drilling bits design

Litian is one of the experienced drill bit manufacturers in China and we have many face designs of drill button bits suitable for different rock formations, which can meet the drilling requirements of different hardness rocks, improve drilling efficiency and reduce costs.


Strict quality control

All button drill bits for rock drilling have implemented strict quality control to ensure that each button drill bit is of high quality.



Button Bits Selection


For different rock formations and drilling requirements, button rock drill bits need to be equipped with different types of bit faces, skirts and carbides.


Bit Face Selection

Face Design

Application

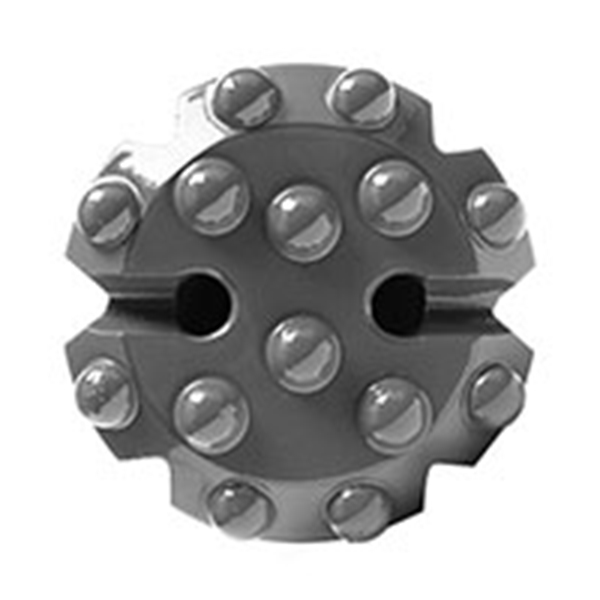

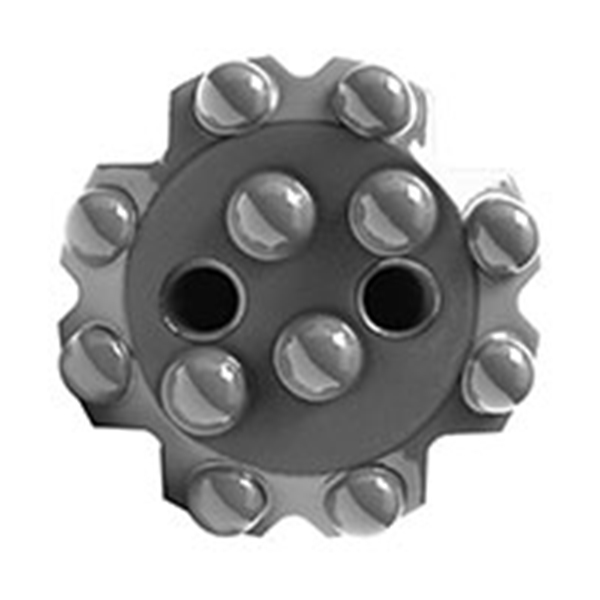

Flat Face


Flat face button drill bits are suitable for all rock conditions, especially for the rock with higher hardness and higher abrasiveness. Such as granite and basalt.

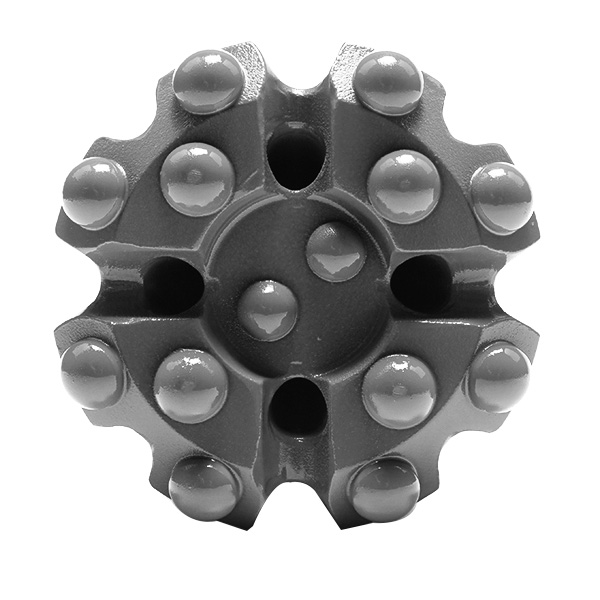

Drop Center Button Bit

Drop Center

Drop center button drill bits are mainly suitable for the rock with low hardness, low abrasiveness, and less consolidation. The bits can drill straighter holes.

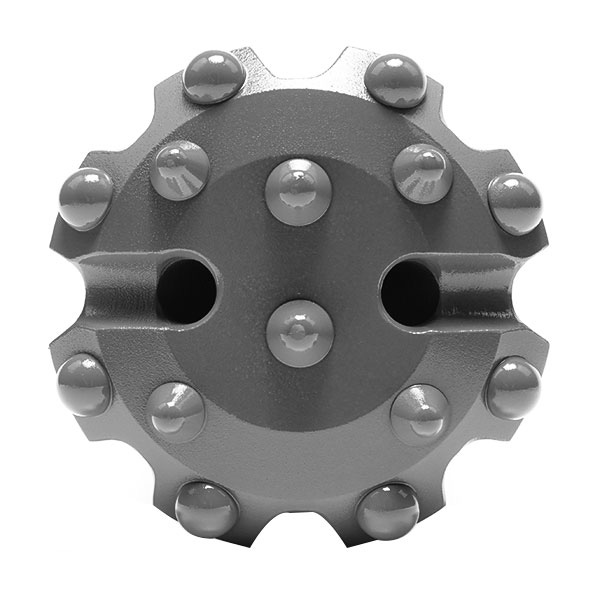

Convex Face Button Bit

Convex

Convex Face button bits are designed for fast penetration rates in softer rock.


Carbide Button Selection

Button shapes

Application

Rock Hardness

Penetration Velocity

Carbide Service Life

Vibration


spherical buttons

Spherical Buttons

Hard

 ■■■

Slower

■□□

longer service life

less prone to breaking

■■■

More

■■■


ballistic buttons

Ballistic Buttons

medium

Soft

■■□


Faster

■■□

shorter service life

more prone to breaking

■■□

Less

■□□


conical buttons

Conical Buttons


Soft

■□□


Faster

■■■

shorter service life

more prone to breaking

■□□


Less

■□□


Skirt Selection

Skirts

                                                                                   Application

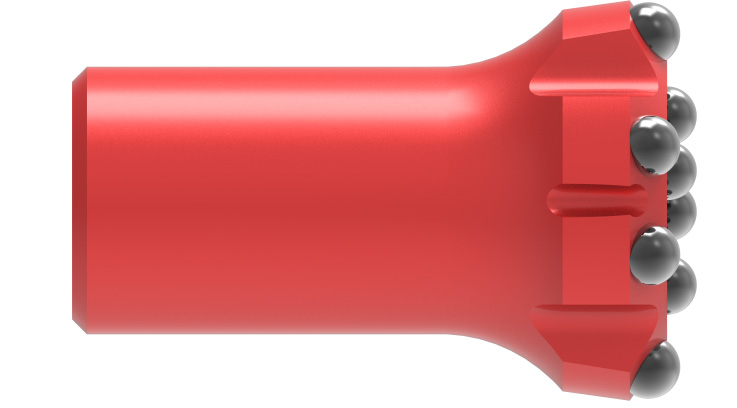

Standard Skirt Button Bit

Standard Skirt

Standard skirt button drill bits are suitable for all rock conditions.

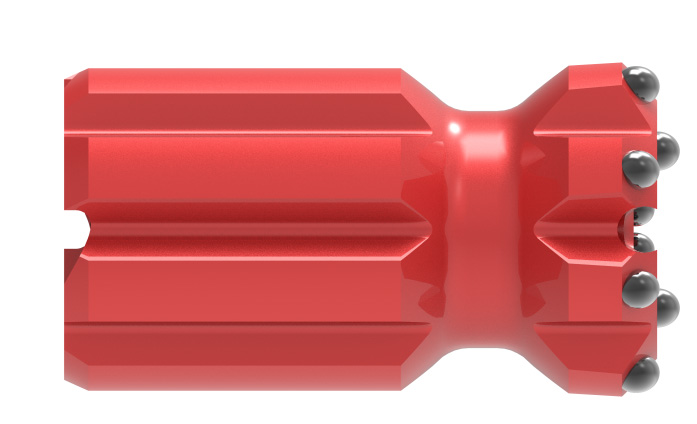

Retrac Skirt Button Bit

Retrac Skirt

Retrac button drill bits are mainly used for unconsolidated rock mass with poor integrity. The skirt is designed to improve the straightness of the drilling hole and assist in the retrieval of drill rock tools.


Litian Button Bits Downloads
