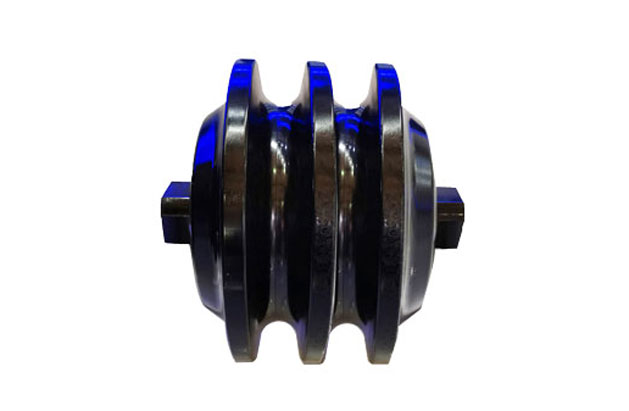

Triple Disc Cutter

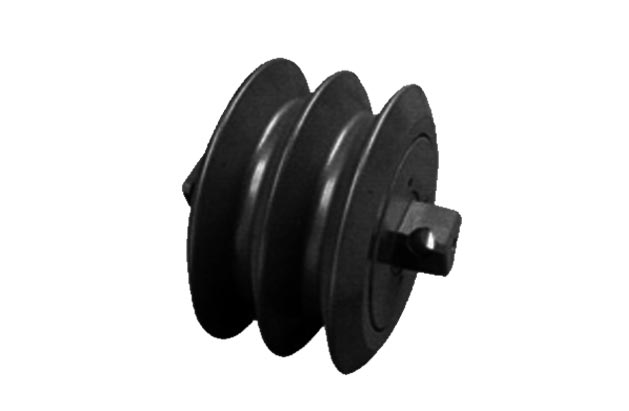

Triple Disc Cutter Bits

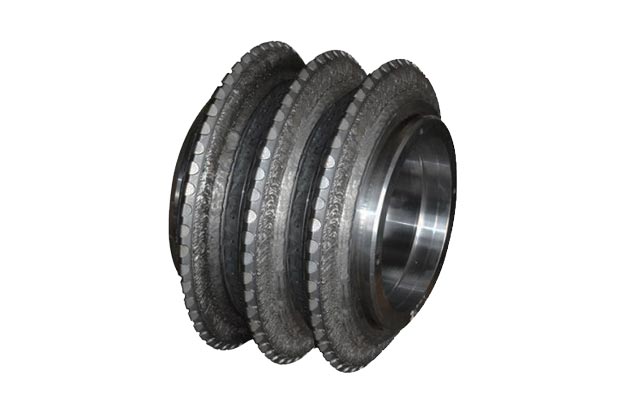

Triple Disc Cutter With Carbide Teeth Insert

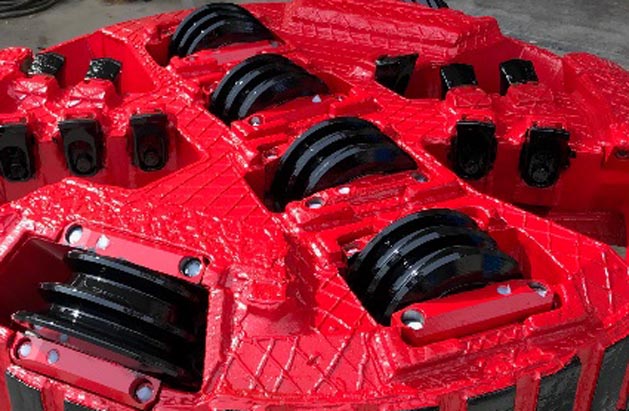

Triple Disc Roller Cutters
Triple Disc Cutter
Triple Disc Cutter Bits
Triple Disc Cutter With Carbide Teeth Insert
Triple Disc Roller Cutters

Triple Disc Cutter

Triple Disc Cutter, a kind of disc cutter with three cutter rings, is mostly mounted micro-tunneling equipment (such as AVN machines, slurry machines, pipe jacking machines), and can be installed on the front, gauge, and center position of the cutter head.

Triple Disc Cutter Specification


Triple Disc Cutter

Diameter

Load Capacity

 [tonne]

Cutter ring

Structure

product

[inch]

[mm]

Triple Disc Cutter

12 1/2"

320

14

Optional

Monoblock / Assembly

12"

305

12-16

Optional

Monoblock / Assembly

11"

280

13

Optional

Monoblock / Assembly

10"

250

10

Optional

Monoblock / Assembly

9"

220

9

Optional

Monoblock

8"

200

8

Optional

Monoblock

7"

180

8

Optional

Monoblock

6 1/2"

165

5

Optional

Monoblock

6"

150

4

Optional

Monoblock

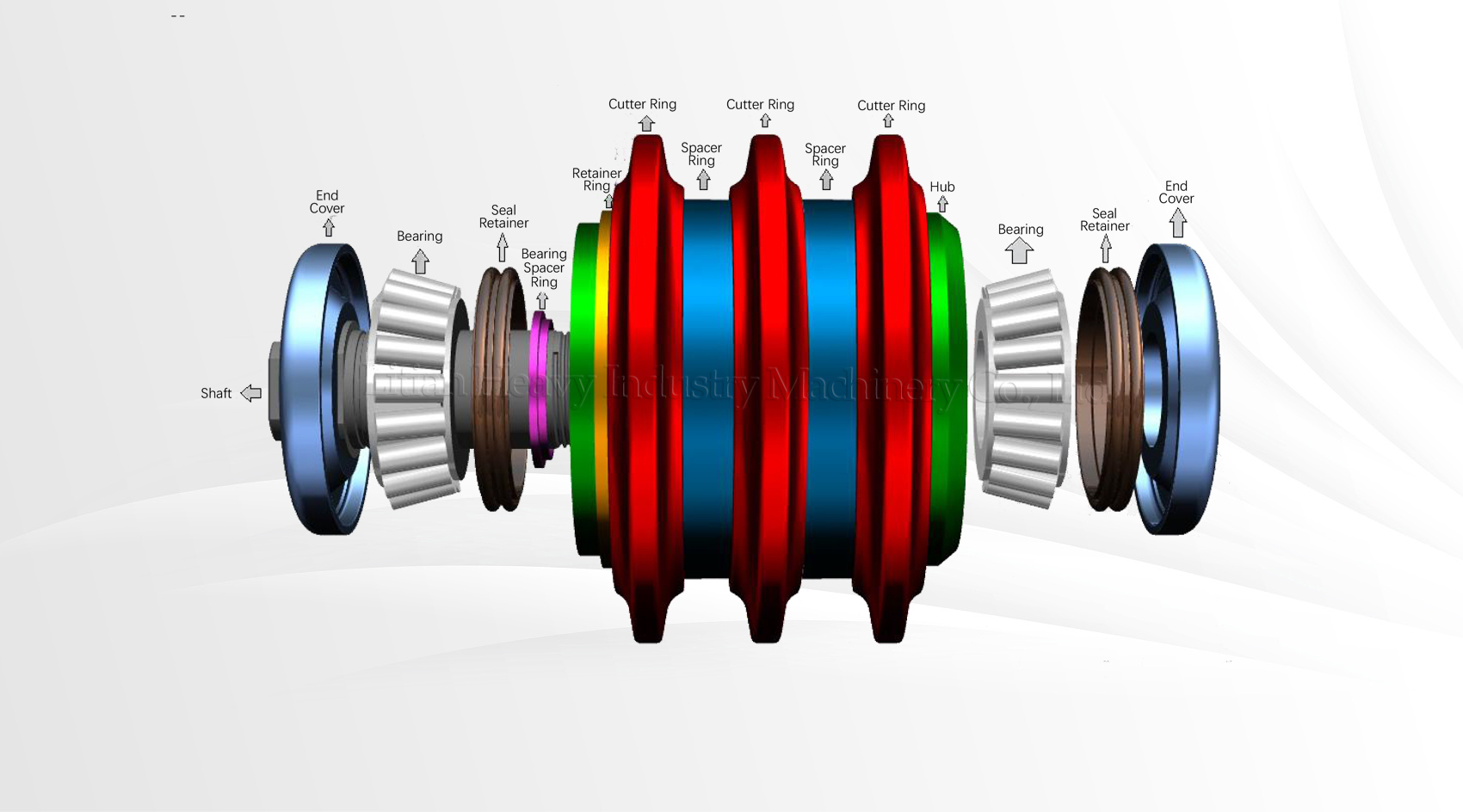

Cutter Structure Chart

Triple Disc Cutter Chart
