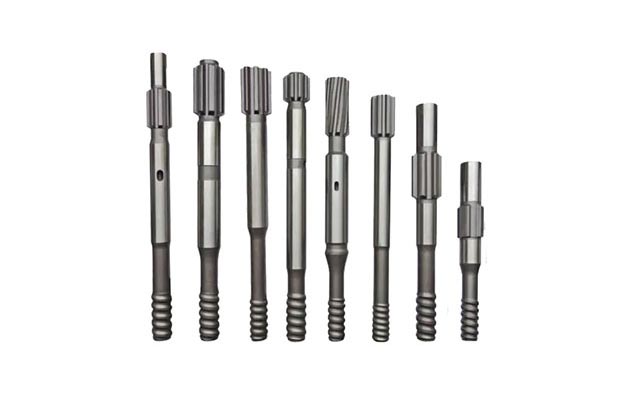

Drill Shank Adapters

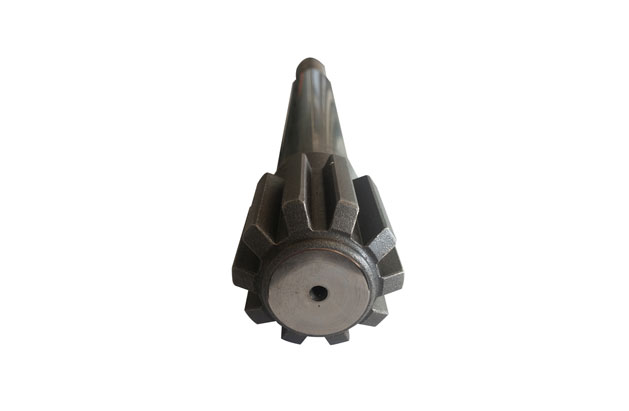

Rock Drill Shank Adapter

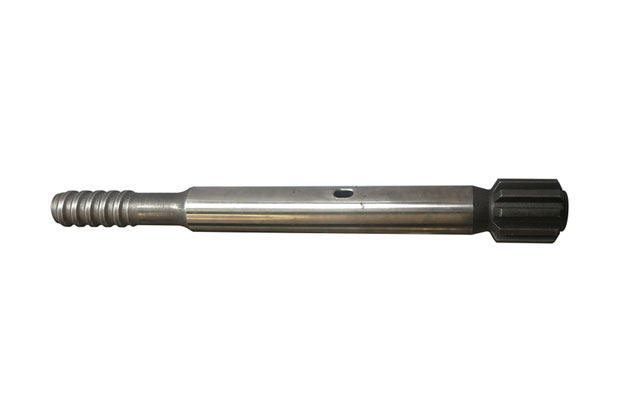

Shank Adapter HLX5
T45 Shank Adapter
Top Hammer Shank Adapter

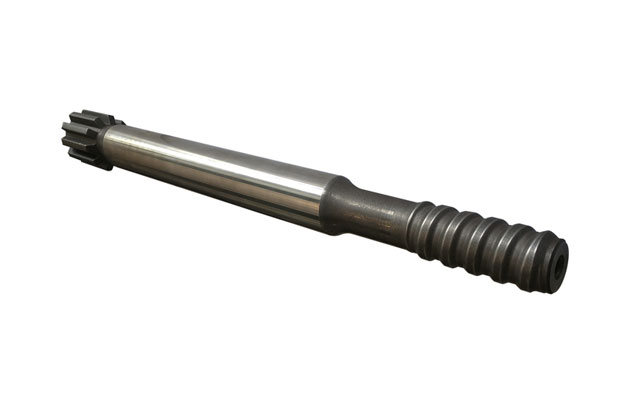

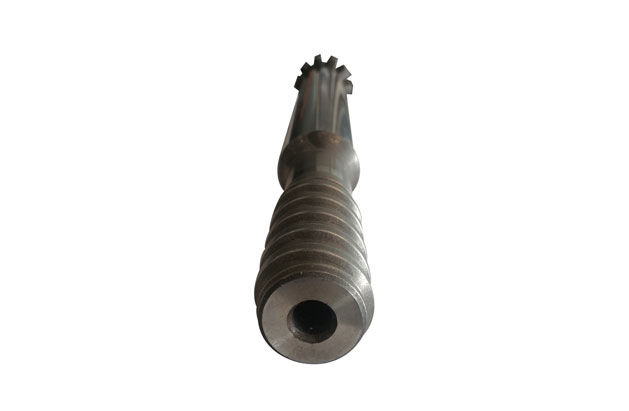

Shank Adapter HL/RD/HLX

Litian shank adapters select high-quality alloy structural steel as raw materials, adopt advanced thread manufacturing technology and surface treatment technology, and are manufactured according to precise tolerances, which can minimize the loss of impact energy during the transmission process.


Our shank adapters are applicable to various brands of rock drills, such as Sand vik (Tomrock) rock drills: HL300, HD400, HL500, HL600, HL700, HL850, HL1000, HL1500, HLX5, RD520 series, etc.


We can also design and produce various specifications of rock drill shank adapters according to your needs.


Specification Of Shank Adapter

Sandvik
HLX 5, HLX 5T

App.

Thread

Length

Diameter

Weight

Model No.

Part No.

Similar Part No.




[mm]

[mm]

[kg]







DT

R38

500

45

5.2

R38*10D45-500

807-0113-50-202

7803-7585-01 / 90516173




DT

T38

500

45

5.1

T38*10D45-500

822-0113-50-202

7304-7585-01 / 90516198

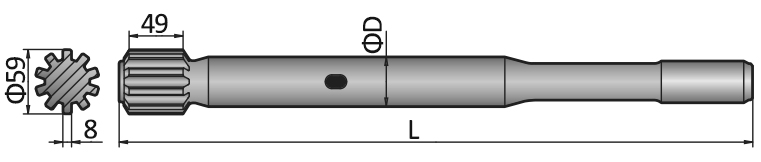

Sandvik Hlx 5, Hlx 5t

DT

T45

500

45

5.5

T45*10D45-500

823-0113-50-202

90003672




BE

T38

575

45

5.7

T38*10D45-575

822-0113-57-202

7304-7586-01 / 90516199




BE

T45

575

45

5.9

T45*10D45-575

823-0113-57-202

7305-7586-01 / 90516144


RD520, RD525

App.

Thread

Length

Diameter

Weight

Model No.

Part No.

Similar Part No.




[mm]

[mm]

[kg]







DT

T38

525

45

5.7

T38*8D45-525

822-0186-52-202

7304-7669-01

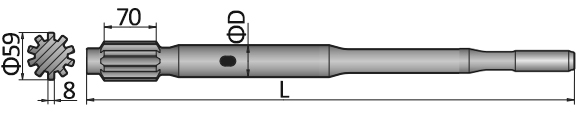

Sandvik Rd520 Rd525

DT

T38

600

45

6.6

T38*8D45-600

822-0186-60-202

7304-7666-01

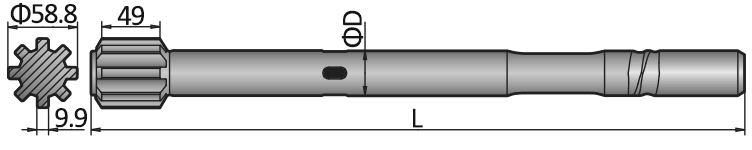

HL 500, HL 510

App.

Thread

Length

Diameter

Weight

Model No.

Part No.

Similar Part No.




[mm]

[mm]

[kg]








BE

R32

550

45

5.4

R32*8D45-550

805-0108-55-202

7803-7557-01

Sandvik Hl 500, Hl 510

BE

T38

550

45

5.6

T38*8D45-550

822-0108-55-202

7304-7557-01




BE

T45

550

45

5.9

T45*8D45-550

823-0108-55-202

7305-7557-01 / 90516207

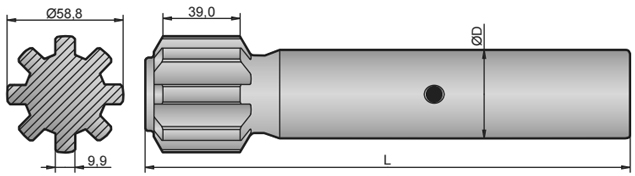

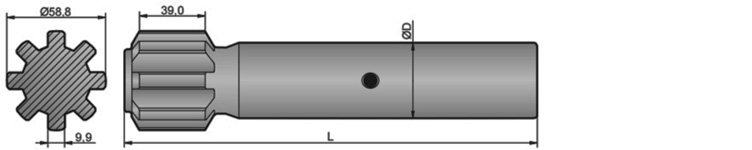

HL 300

App.

Thread

Length

Diameter

Weight

Model No.

Part No.

Similar Part No.




[mm]

[mm]

[kg]

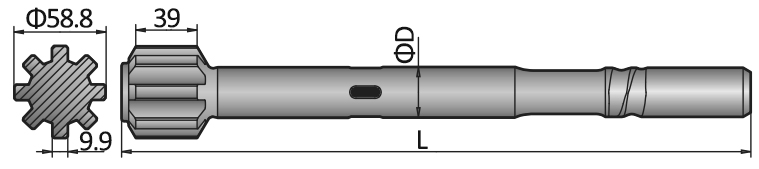

Sandvik Hl 300

BE

R32

400

32

2.6

R32*8D32-400

805-0101-40-202

7803-7549-01/ 90516166


HL 600, HL 600S

App.

Thread

Length

Diameter

Weight

Model No.

Part No.

Similar Part No.




[mm]

[mm]

[kg]

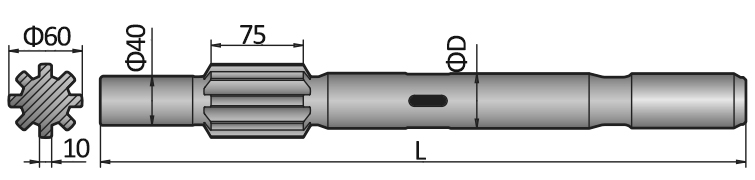

Sandvik Hl 600, Hl 600s

DT/PD

T38

525

45

5.6

T38*8D45-525

822-0115-52-202

7304-7537-01 / 90516191


DT/PDT45525455.8T45*8D45-525823-0115-52-2027305-7537-01 / 90516210


HL 645,HL 645S

App.

Thread

Length

Diameter

Weight

Model No.

Part No.

Similar Part No.




[mm]

[mm]

[kg]

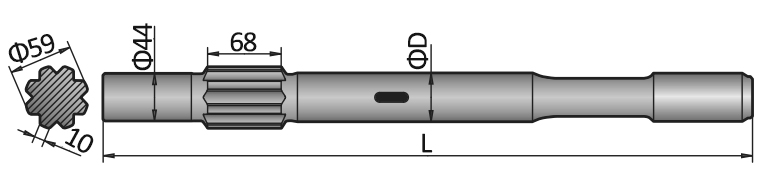

Sandvik Hl 645, Hl 645s

BE

T45

600

45

6.5

T45*8D45-600

823-01129-60-202

7305-7541-02 / 90502270


HL 1000, HL 1000S

App.

Thread

Length

Diameter

Weight

Model No.

Part No.

Similar Part No.




[mm]

[mm]

[kg]







PD

T51

590

52

9.3

T51*8D52-590

824-0122-59-202

7306-6008-01 / 90516036

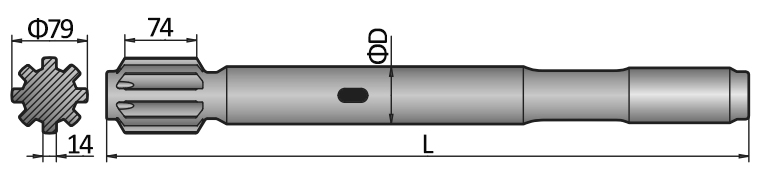

Sandvik Hl 1000, Hl 1000s

BE

T45

670

52

10.0

T45*8D52-670

823-0122-67-202

7305-6010-01 / 90516027




BE

T51

670

52

10.0

T51*8D52-670

824-0122-67-202

7306-6010-02 / 90516037

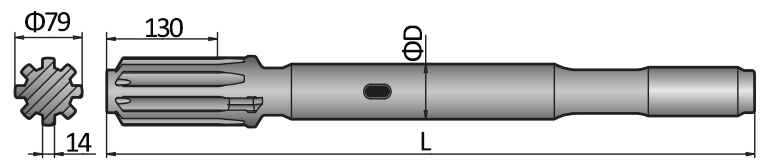

HL1000 PE-65, HL 1500, HL 1500 PE-65, HL 1560 T-65

App.

Thread

Length

Diameter

Weight

Model No.

Part No.

Similar Part No.




[mm]

[mm]

[kg]




Sandvik Hl1000 Pe 65, Hl 1500, Hl 1500 Pe 65, Hl 1560 T 65

BE

T51

760

65

16.3

T51*8D65-760

824-01131-76-202

7306-6025-02 / 90003702



Can't find the shank adapter you want? Please contact us! ↓
