COP1838 T38 R38 R32 435mm China Shank Adapter

Product Details：

Product Name: COP1838 T38 Shank Adapter

Place of Origin: China

Brand Name: LITIAN

Certification: ISO9001:2015

Model No.: T38*8D38-435

Category: Shank Adapter



Product Description

Litian produces various types of rock drill shank shanks, such as T38 shank adapter, R38 shank adapter, R32 shank adapter, T45 shank adapter, etc., which can be applied to various brands of rock drills.

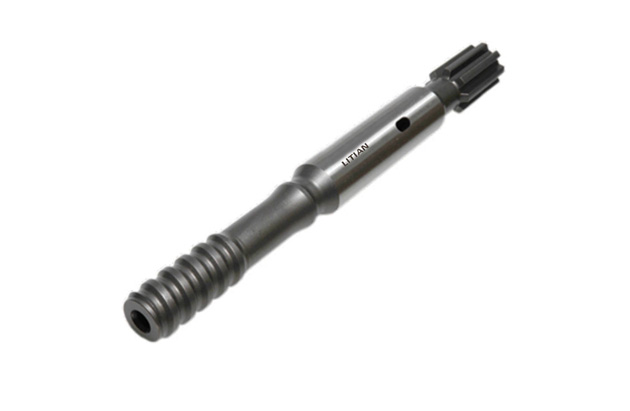

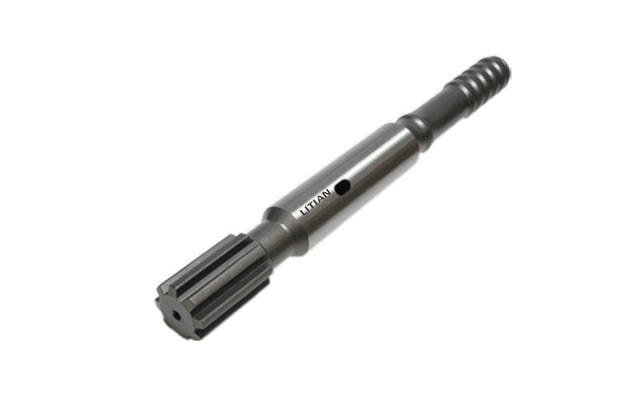

T38-435mm shank adapter is suitable for COP1838, COP1550, COP1440 and other rock drills. The material of this China shank adapter is made of high quality high-strength alloy structural steel, and the surface-strengthened hot processing technology can ensure that the impacted end is not deformed and has good working performance.

Product	COP1838 435MM T38 Shank Adapter
Rock Drill	Atlas Copco
Length	^[mm]435MM
Diameter	^[mm]38MM ^[in] 1 1/2"
Net Weight	～3.8kg
Application	Drifting, Tunnelling
Model No.	T38*8D38-435
Similar Parts No.	7304-3652-01 90516120

Other China Shank Adapters for COP1838

Thread	Length [mm]	Diameter [mm]	Splines	Weight [kg]	Model No.	Similar Part No.

T38	525	52	8	6.2	T38*8D52-525	7304365501 90516184
T45	525	52	8	6.5	T45*8D52-525	7305-3655-01 90516206
T51	525	52	8	6.8	T51*8D52-525	7306-3655-02 90516217

R32	435	38	8	3.6	R32*8D38-435	7803-3652-01 90516087
R38	435	38	8	3.9	R38*8D38-435	7804-3652-01 90516098
T38	435	38	8	3.8	T38*8D38-435	7304-3652-01 90516120

R32	525	38	8	4.2	R32*8D38-525	7803-3656-02 90516088
R38	525	38	8	4.3	R38*8D38-525	90516099
T38	525	38	8	4.3	T38*8D38-525	7304-3656-01 90516121
