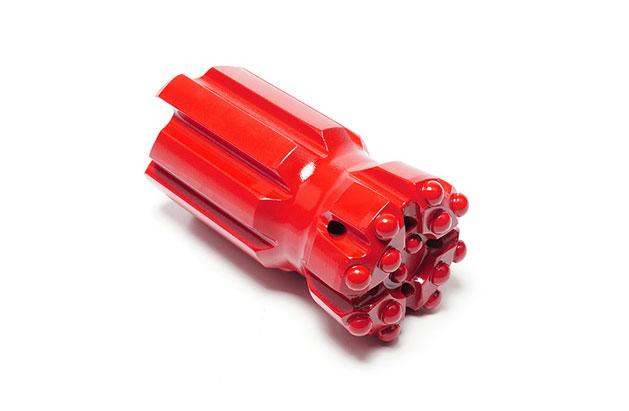

retrac bit
retrac bit
retrac bit

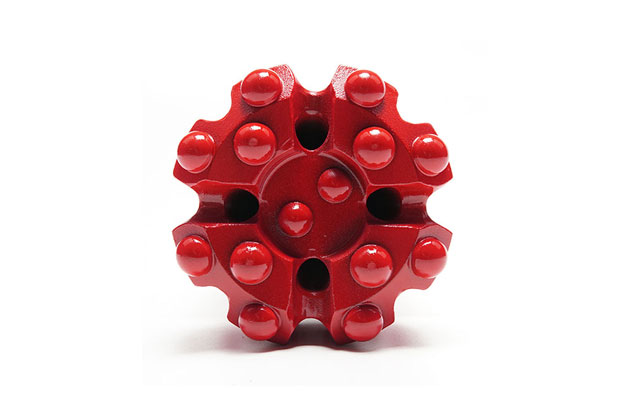

mining drill bit
retrac bit
retrac bit
retrac bit

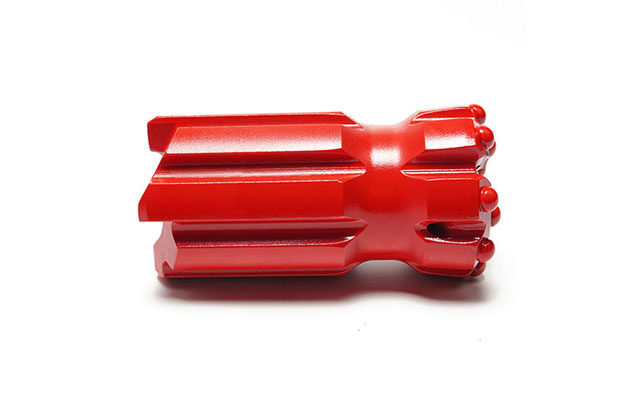

mining drill bit

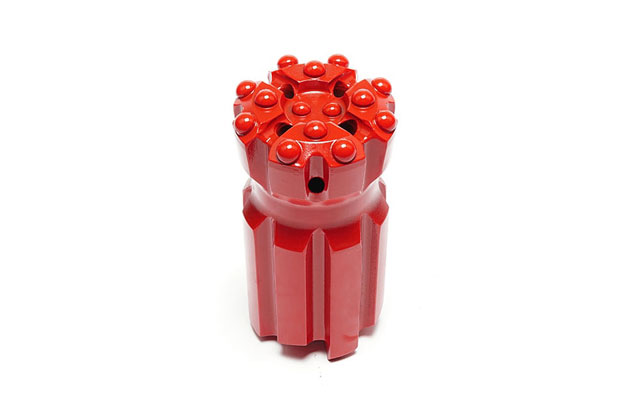

Retrac Button Bit

Retrac button bits are mainly used in loose rock mass with relatively broken rock. The retrac skirt design can assist in retrieving the drill tool, reduce the phenomenon of bit stuck and buried, and help improve the straightness of the borehole.

As a China retrac button bit supplier, we can provide you with high-quality button bit includes retrac rock drill bits, such as R25 retract button bit, R28 retract button bit, R32 retrac button bit, R35 retrac button bit, R38 retrac button bit, T38 retract drill bit, T45 retract drill bit, T51 retract drill bit, GT60 retract button bit, ST58 retrac button bit, ST68 retrac button bit, SR35 retrac drill bit and other types of rock drill bit.

Retrac Button Bit Specification

R25
AppearanceDiameterButtonsFlushing HoleWeightModel No.


[mm]

[in]
Gauge
[No.] × [mm]
Front
[No.] × [mm]
Side
[No.]
Front
[No.]

[kg]

R25R28Y.png411 5/8"5 × 92 × 8210.78R25-417YFP
451 3/4"6 × 93 × 8131R25-459YFP
481 7/8"6 × 103 × 9131.1R25-489YFP
512"6 × 103 × 9-31.35R25-519YFP
552 11/64"6 × 113 × 9131.54R25-559YFP
572 1/4"6 × 103 × 10-31.6R25-579YFP
642 1/2"8 × 114 × 10122.2R25-6412YFP


R28
AppearanceDiameterButtonsFlushing HoleWeightModel No.


[mm]

[in]
Gauge
[No.] × [mm]
Front
[No.] × [mm]
Side
[No.]
Front
[No.]

[kg]

R25R28Y.png451 3/4"6 × 93 × 8131R28-459YFP
512"6 × 103 × 9131.35R28-519YFP


R32
AppearanceDiameterButtonsFlushing HoleWeightModel No.


[mm]

[in]
Gauge
[No.] × [mm]
Front
[No.] × [mm]
Side
[No.]
Front
[No.]

[kg]

R32Y-1.png451 3/4"6 × 93 × 8130.9R32-459YFP
481 7/8"6 × 103 × 9131.1R32-489YFP
512"6 × 103 × 9-31.2R32-519YFP
572 1/4"6 × 103 × 10-31.7R32-579YFP
642 1/2"6 × 113 × 10122.2R32-649YFP









R32Y-2.png602 23/64"8 × 104 × 9121.7R32-6012YFP
642 1/2"8 × 104 × 10221.9R32-6412YFP
763"8 × 124 × 11222.2R32-7612YFP









R32Y-3.png763"8 × 114 × 11, 1 × 11-43.3R32-7613YFA


SR35
AppearanceDiameterButtonsFlushing HoleWeightModel No.


[mm]

[in]
Gauge
[No.] × [mm]
Front
[No.] × [mm]
Side
[No.]
Front
[No.]

[kg]

R32Y-2.png512"8 × 93 × 9211.6SR35-5111YFP
542 1/8"8 × 93 × 9211.8SR35-5411YFP









R32Y-3.png542 1/8"6 × 103 × 9131.3SR35-549YFA


R38
AppearanceDiameterButtonsFlushing HoleWeightModel No.


[mm]

[in]
Gauge
[No.] × [mm]
Front
[No.] × [mm]
Side
[No.]
Front
[No.]

[kg]

R38Y-1.png642 1/2"8 × 104 × 10221.9R38-6412YFP
763"8 × 124 × 11222.2R38-7612YFP
642 1/2"6 × 113 × 10121.9R38-649YFP









R38Y-2.png642 1/2"6 × 113 × 10, 1 × 9121.9R38-6410YFA
64
2 1/2"
8 × 10
4 × 10, 1 × 9
141.9R38-6413YFA
662 19/32″6 × 113 × 10, 1 × 9121.9R38-6610YFA
702 3/4"8 × 104 × 10, 1 × 9142.4R38-7013YFA
763"8 × 114 × 11, 1 × 11-43.3R38-7613YFA
893 1/2"8 × 124 × 12, 2 × 10145.3R38-8914YFA
893 1/2"8 × 124 × 11, 1 × 11145.3R38-8913YFA


T38
AppearanceDiameterButtonsFlushing HoleWeightModel No.


[mm]

[in]
Gauge
[No.] × [mm]
Front
[No.] × [mm]
Side
[No.]
Front
[No.]

[kg]

T38Y-1.png642 1/2"8 × 104 × 10221.9T38-6412YFP
763"8 × 124 × 11222.2T38-7612YFP
642 1/2"6 × 113 × 10121.9T38-649YFP









T38Y-2.png642 1/2"6 × 113 × 10, 1 × 9121.9T38-6410YFA
642 1/2"8 × 104 × 10, 1 × 9141.9T38-6413YFA
702 3/4"8 × 104 × 10, 1 × 9142.4T38-7013YFA









T38Y-3.png652 9/16"6 × 124 × 10123.1T38-6510YSP


T45
AppearanceDiameterButtonsFlushing HoleWeightModel No.


[mm]

[in]
Gauge
[No.] × [mm]
Front
[No.] × [mm]
Side
[No.]
Front
[No.]

[kg]

T45Y-1.png763"8 × 124 × 11222.2T45-7612YFP
893 1/2"8 × 135 × 12225.2T45-8913YFP
1024"9 × 126 × 12-36.5T45-10215YFP
1154 1/2"9 × 147 × 13-310T45-11516YFP
1154 1/2"9 × 146 × 13-310T45-11515YFP









T45Y-2.png763"8 × 114 × 11, 1 × 11-43.2T45-7613YFA
893 1/2"8 × 124 × 12, 2 × 10145.4T45-8914YFA
1024"8 × 124 × 12, 3 × 12-47.8T45-10215YFA
1024"8 × 134 × 12, 4 × 12-47.8T45-10216YFA
1154 1/2"8 × 144 × 13, 3 × 12-47.8T45-11515YFA









T45Y-3.png763"8 × 134 × 11, 1 × 11143.5T45-7613YSA
893 1/2"8 × 124 × 12, 1 × 12144.7T45-8913YSA


T51
AppearanceDiameterButtonsFlushing HoleWeightModel No.


[mm]

[in]
Gauge
[No.] × [mm]
Front
[No.] × [mm]
Side
[No.]
Front
[No.]

[kg]

T51Y-2.png893 1/2"8 × 135 × 12224.6T51-8913YFP
1024"8 × 147 × 12127.1T51-10215YFP
1024"9 × 126 × 12-37.1T51-10215YFP1
1154 1/2"9 × 147 × 13-310T51-11516YFP
1154 1/2"9 × 146 × 13-310T51-11515YFP
1275"9 × 147 × 13-313T51-12716YFP












893 1/2"8 × 124 × 11, 1 × 11145.3

T51-8913YFA

893 1/2"8 × 124 × 12, 2 × 10145.4T51-8914YFA
1024"8 × 124 × 12, 3 × 12-47.8T51-10215YFA
1024"8 × 134 × 12, 4 × 12-47.8T51-10216YFA
1154 1/2"8 × 144 × 13, 3 × 12-47.8T51-11515YFA
1154 1/2"8 × 144 × 14, 3 × 12-47.8T51-11515YFA1
1154 1/2"8 × 144 × 14, 4 × 12-410T51-11516YFA









T51Y-4.png893 1/2"9 × 113 × 11, 2 × 10134.8T51-8914YFA2
1024"9 × 123 × 12, 3 × 11136.9T51-10215YFA1
1104 21/64″9 × 146 × 12, 2 × 11-310T51-11017YFA
1275"8 × 164 × 14, 4 × 14-413.5T51-12716YFA









T51Y-5.png1024"8 × 144 × 13, 1 × 13-210.1T51-10213YSA
1154 1/2"9 × 146 × 12, 4 × 12-39.45T51-11519YSA


GT60
AppearanceDiameterButtonsFlushing HoleWeightModel No.


[mm]

[in]
Gauge
[No.] × [mm]
Front
[No.] × [mm]
Side
[No.]
Front
[No.]

[kg]

GT60Y-1.jpg923 5/8″9 × 129 × 12-25.1GT60-9218YSP
963 25/32″9 × 129 × 12-26.5GT60-9618YSP
1024"9 × 1310 × 12-28.5GT60-10219YSP









GT60Y-2.jpg1154 1/2"9 × 1410 × 12-310.8GT60-11519YSP
1275"9 × 1610 × 14-315GT60-12719YSP
1405 1/2"9 × 1610 × 14-315GT60-14019YSP
1526"9 × 1612 × 16-320GT60-15221YSP









GT60Y-3.jpg1154 1/2"9 × 166 × 13-315GT60-11515YSP


ST58
AppearanceDiameterButtonsFlushing HoleWeightModel No.


[mm]

[in]
Gauge
[No.] × [mm]
Front
[No.] × [mm]
Side
[No.]
Front
[No.]

[kg]

ST58Y-1.jpg893 1/2"10 × 124 × 12, 2 × 12-45ST58-8916YSA
1154 1/2"10 × 144 × 14, 4 × 14-410ST58-11518YSA


ST68
AppearanceDiameterButtonsFlushing HoleWeightModel No.


[mm]

[in]
Gauge
[No.] × [mm]
Front
[No.] × [mm]
Side
[No.]
Front
[No.]

[kg]

ST68Y-2.jpg1024"10 × 124 × 12, 4 × 12-49.3ST68-10218YSA
1154 1/2"10 × 144 × 14, 4 × 14-410ST68-11518YSA


Can't find the Retrac Button Bit you want? Please contact us! →

Litian Retrac Button Bit Features

Litian retrac button bits are made of high-quality steel and cemented carbide as raw materials, so they have a long service life. And the use of retrac bits minimize the loss of impact energy during transmission. In addition, the advanced button fixing technology makes the fixing force uniform and not easy to loose buttons. Meanwhile, the use of retract drill bits also ensures the perpendicularity of the borehole, so that the impact energy is concentrated on the rock and the drilling efficiency is improved.

Retrac Button Bit Application

No matter it is mining, rock drilling, or tunneling and blasting, Litian retract bits are suitable for all these situations.

Retrac Button Bit Application

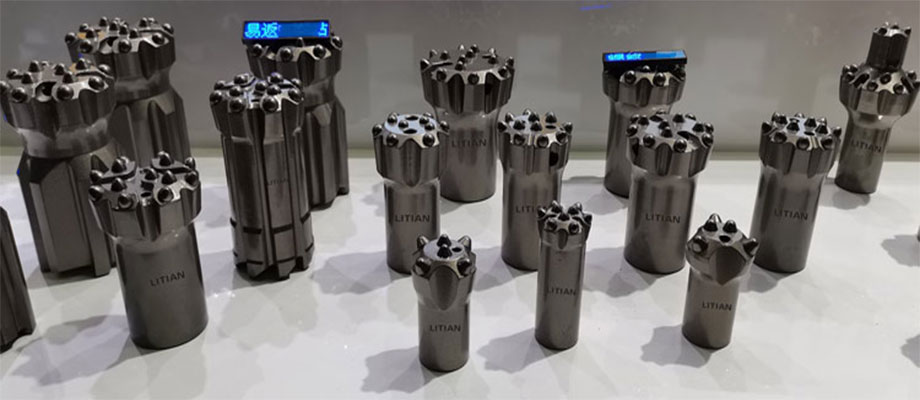

Retrac Rock Drill Bits Design

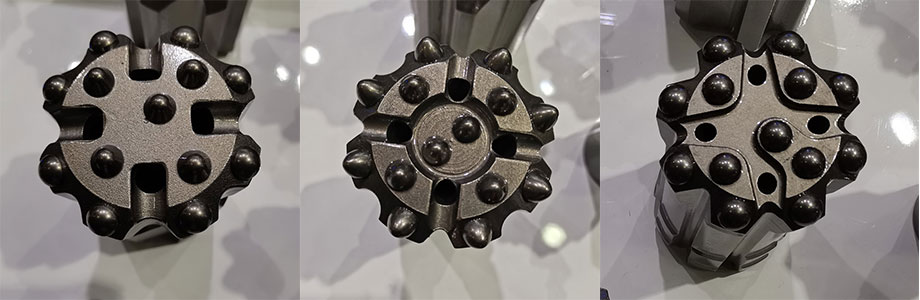

Retrac Button Bit DesignRetrac Button Bit Design

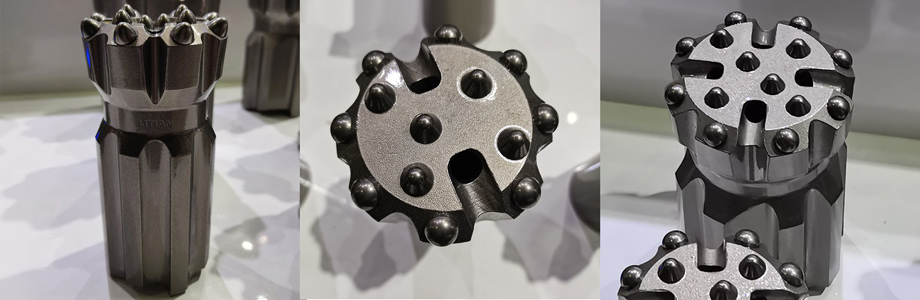

Retrac Bit Design


Retrac Button Bits for Rock Drilling Download
