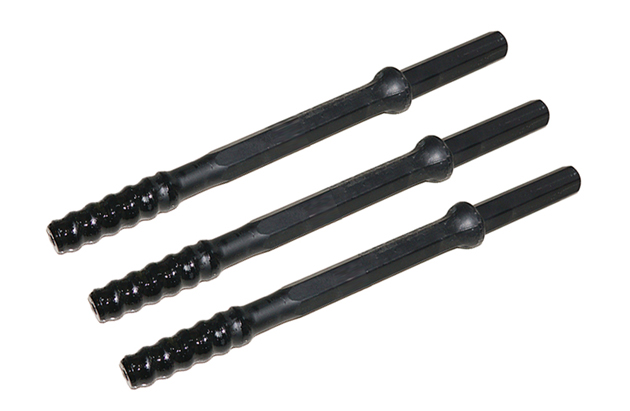

Hexagonal shank rod (shank end rod) is a light-duty rock drilling tool, which is mainly used for rail-type pneumatic rock drills. It is often used in the small hole drilling of underground mine bolting holes, mining blasting shallow holes and mine shafts.
| Length | Rod Diameter | Weight | Model No. | |||
| [mm] | [ft-in] | [mm] | [in] | [kg] | ||
Shank H22×108mm, R25 thread | 265 | 10 3/8" | 22 | 7/8" | 1.2 | H22-R25-265 |
| 710 | 2′ 3 5/8″ | 22 | 7/8" | 2.7 | H22-R25-710 | |
| 800 | 2′ 7 1/2″ | 22 | 7/8" | 2.9 | H22-R25-800 | |
| 1000 | 3′ 3 3/4″ | 22 | 7/8" | 3.4 | H22-R25-1000 | |
| 1200 | 3' 11 1/4" | 22 | 7/8" | 4.5 | H22-R25-1200 | |
| 1830 | 6' | 22 | 7/8" | 6.2 | H22-R25-1830 | |
| 2435 | 8' | 22 | 7/8" | 8 | H22-R25-2435 | |
| 3200 | 10' 6" | 22 | 7/8" | 10.4 | H22-R25-3200 | |
| Length | Rod Diameter | Weight | Model No. | |||
| [mm] | [ft-in] | [mm] | [in] | [kg] | ||
Shank H25×108mm, R25 thread | 1220 | 4' | 25 | 1" | 5.1 | H25-R25-1220 |
| 1830 | 6' | 25 | 1" | 7.7 | H25-R25-1830 | |
| 2435 | 8' | 25 | 1" | 9.5 | H25-R25-2435 | |
