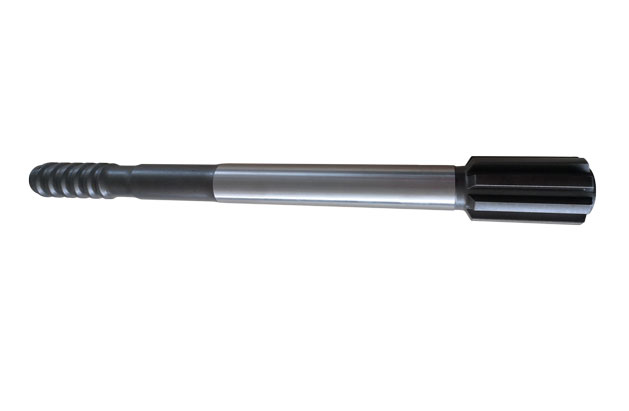

Cop1640 Shank Adapter

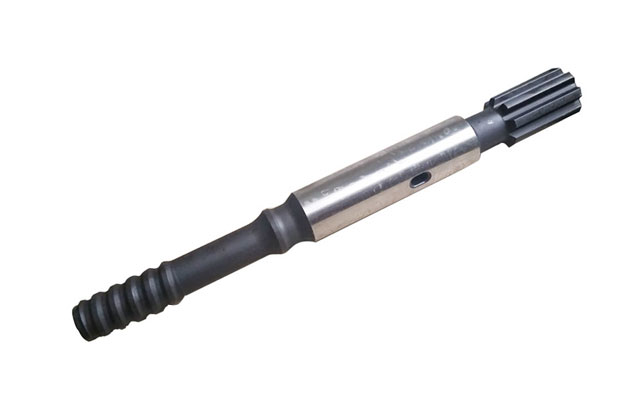

Shank Adapter For Drill
Shank Adaptor
Drill Shank Adapter
Cop1640 Shank Adapter
Shank Adapter For Drill
Shank Adaptor
Drill Shank Adapter

Shank Adapter COP/BBC

Litian shank adapters are made of high-quality alloy steel, which has high impact contact fatigue resistance and bending fatigue resistance after heat treatment, and can meet the different rock drilling working conditions. We use unique advanced surface treatment technology and strict quality control to ensure that our shanks meet the expectations of each customer.


Our shank adapters are suitable for a variety of brand rock drill models, such as Atlas Copco (Epiroc) rock drills: BBC43, BBC44, BBC45, BBC100, BBC51, BBC52, BBC54, BBC120, BBE56, BBE57, COP125, COP130, COP131, COP 1028, COP 1032, COP 1036, COP1038, COP 1132, COP1238, COP1240, COP1440, COP1550, COP1638, COP1838, COP2238, COP1838EX, COP2150EX, COP 4050, COP4050EX rock drills, etc.


We can also design and produce various specifications of rock drill shank adapters according to your needs.


Specification Of Shank Adapter

Atlas Copco

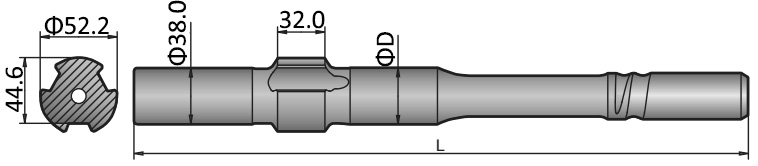

Atlas Copco COP 125, COP130, COP131

App.

Thread

Length

Diameter

Weight

Model No.

Part No.

Similar Part No.




[mm]

[mm]

[kg]




Atlas Copco Cop 125, Cop130, Cop131

DT/BE/PD

T38

380

38

3.0

T38*3D38-380

822-0236-38-202

7304-4500-60 / 90515979




DT/BE/PD

T45

380

38

3.0

T45*3D38-380

823-0236-38-202

90515994

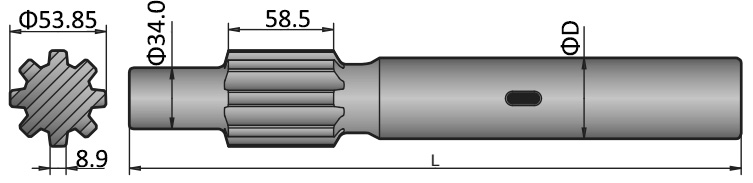

Atlas Copco COP 1032 HD

App.

Thread

Length

Diameter

Weight

Model No.

Part No.

Similar Product Part No.




[mm]

[mm]

[kg]



Sandvik / Atlas Copo

Atlas Copco Cop 1032 Hd

DT/BO

R32

340

45

3.4

R32*8D45-340

805-0237-34-202

7803-3588-01 / 90515883




DT/BO

R38

340

55

4.1

R38*8D55-340

807-0237-34-202

7804-3575-01 / 90516169

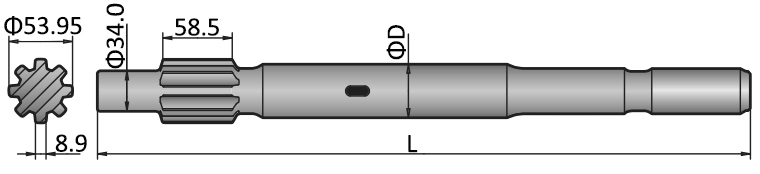

Atlas Copco COP 1032 LE

App.

Thread

Length

Diameter

Weight

Model No.

Part No.

Similar Product Part No.




[mm]

[mm]

[kg]



Sandvik / Atlas Copo

Atlas Copco Cop 1032 Le

BE

R32

550

45

4.8

R32*8D45-550

805-0239-55-202

7803-3576-01 / 90515884

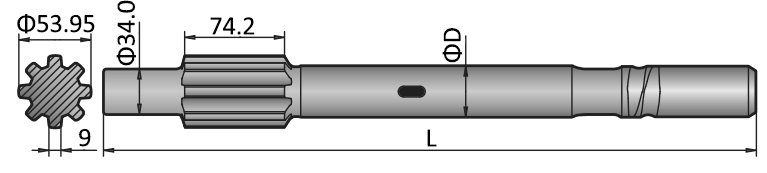

Atlas Copco COP 1036, COP1038, COP1238

App.

Thread

Length

Diameter

Weight

Model No.

Part No.

Similar Product Part No.




[mm]

[mm]

[kg]



Sandvik / Atlas Copo




DT

R32

485

38

4.0

R32*8D38-485

805-0294-48-202

7803-3590-03 / 90515890

Atlas Copco Cop 1036, Cop1038, Cop1238

DT

R38

485

38

4.2

R38*8D38-485

807-0294-48-202

7804-3590-03 / 90515961




DT

T38

485

38

4.2

T38*8D38-485

822-0294-48-202

7304-3590-03 / 90515983



Atlas Copco COP 1036, COP1038, COP1238

App.

Thread

Length

Diameter

Weight

Model No.

Part No.

Similar Product Part No.




[mm]

[mm]

[kg]



Sandvik / Atlas Copo




BE

R32

500

38

4.0

R32*8D38-500

805-0294-50-202

7803-3591-01 / 90515887

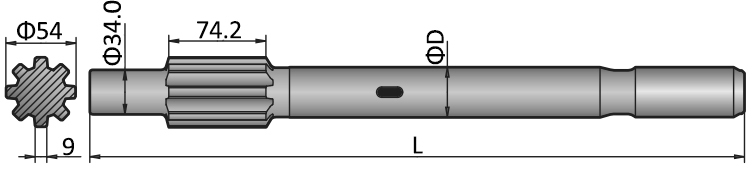

Atlas Copco Cop 1036, Cop1038, Cop1238 2

BE

T38

500

38

4.4

T38*8D38-500

822-0294-50-202

7304-3591-01 / 90515980




BE

T45

500

45

5.0

T45*8D45-500

823-0294-50-202

7305-3591-01 / 90515995


Atlas Copco COP 1036, COP1038, COP1238

App.

Thread

Length

Diameter

Weight

Model No.

Part No.

Similar Product Part No.




[mm]

[mm]

[kg]



Sandvik / Atlas Copo




BE/PD

R32

575

38

4.6

R32*8D38-575

805-0294-57-202

7803-3593-01 / 90515888

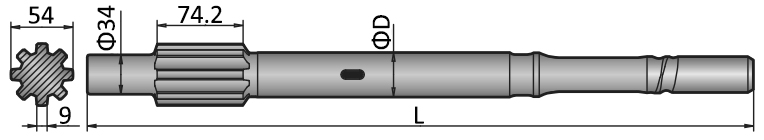

Atlas Copco Cop 1036, Cop1038, Cop1238 3

BE/PD

R38

575

38

4.7

R38*8D38-575

807-0294-57-202

90515899




BE/PD

T38

575

38

4.9

T38*8D38-575

822-0294-57-202

7304-3593-01 / 90515981




BE/PD

T45

575

45

5.8

T45*8D45-575

823-0294-57-202

7305-3593-01 / 90515996

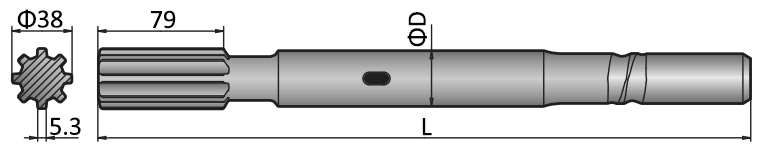

Atlas Copco COP 1132

App.

Thread

Length

Diameter

Weight

Model No.

Part No.

Similar Product Part No.




[mm]

[mm]

[kg]



Sandvik / Atlas Copo

Atlas Copco Cop 1132

DT/BO

R32

410

35

2.5

R32*8D35-410

805-0247-41-202

7803-3581-02 / 90515862




PD

R32

500

35

3.0

R32*8D35-500

805-0247-50-202

7803-3583-02 / 90515864

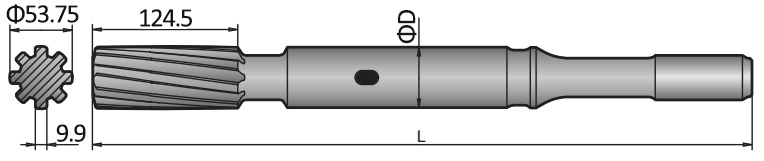

Atlas Copco COP 1240

App.

Thread

Length

Diameter

Weight

Model No.

Part No.

Similar Product Part No.




[mm]

[mm]

[kg]



Sandvik / Atlas Copo

Atlas Copco Cop 1240

BE

R32

565

52

6.4

R32*8D52-565

805-0296-56-202

90515834




BE

T38

565

52

6.6

T38*8D52-565

822-0296-56-202

90516125

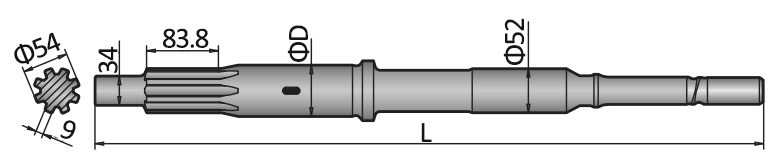

Atlas Copco COP 1338EX

App.

Thread

Length

Diameter

Weight

Model No.

Part No.

Similar Product Part No.




[mm]

[mm]

[kg]



Sandvik / Atlas Copo

Atlas Copco Cop 1338ex

BE/PD

R32

780

60

10.1

R32*8D60-780

805-0298-78-202

90516273

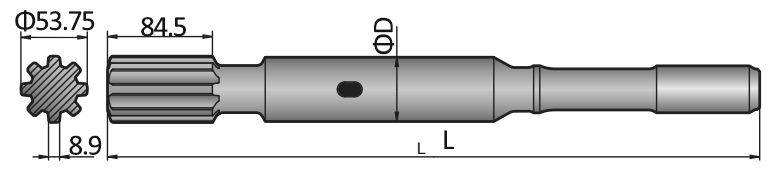

Atlas Copco COP 1440, COP 1550, COP 1838

App.

Thread

Length

Diameter

Weight

Model No.

Part No.

Similar Product Part No.




[mm]

[mm]

[kg]



Sandvik / Atlas Copo

Atlas Copco Cop 1440, Cop 1550, Cop 1838

BE

T45

525

52

6.1

T45*8D52-525

823-02100-52-202

7305-3655-01 / 90516206




BE

T51

525

52

6.5

T51*8D52-525

824-02100-52-202

7306-3655-02 / 90516217

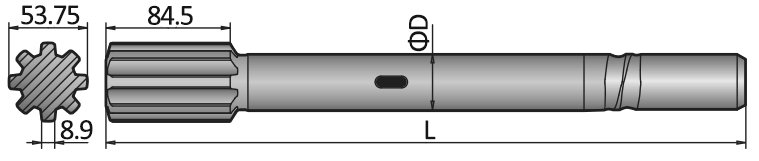

Atlas Copco COP 1440, COP 1550, COP 1638, COP 1838, COP 2238

App.

Thread

Length

Diameter

Weight

Model No.

Part No.

Similar Product Part No.




[mm]

[mm]

[kg]



Sandvik / Atlas Copo




DT

R32

435

38

3.6

R32*8D38-435

805-02101-43-202

7803-3652-01 / 90516087

Atlas Copco Cop 1440, Cop 1550, Cop 1638, Cop 1838, Cop 2238

DT

R38

435

38

3.9

R38*8D38-435

807-02101-43-202

7804-3652-01 / 90516098




DT

T38

435

38

3.8

T38*8D38-435

822-02101-43-202

7304-3652-01 / 90516120

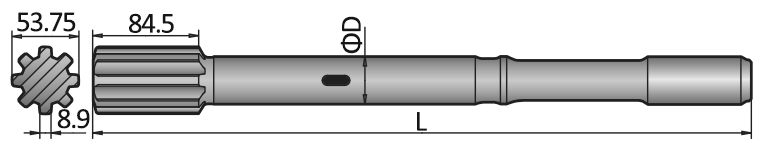

Atlas Copco COP 1440, COP 1550, COP 1638, COP 1838, COP 2238

App.

Thread

Length

Diameter

Weight

Model No.

Part No.

Similar Product Part No.




[mm]

[mm]

[kg]



Sandvik / Atlas Copo




BE

R32

525

38

4.2

R32*8D38-525

805-02101-52-202

7803-3656-02 / 90516088

Atlas Copco Cop 1440, Cop 1550, Cop 1638, Cop 1838, Cop 2238 2

BE

R38

525

38

4.3

R38*8D38-525

807-02101-52-202

90516099




BE

T38

525

38

4.3

T38*8D38-525

822-02101-52-202

7304-3656-01 / 90516121

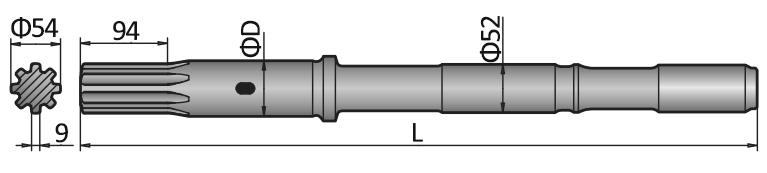

Atlas Copco COP 1838EX

App.

Thread

Length

Diameter

Weight

Model No.

Part No.

Similar Product Part No.




[mm]

[mm]

[kg]



Sandvik / Atlas Copo




BE

T38

730

60

9.8

T38*8D60-730

822-02105-73-202

7304-3825-02 / 90516288

Atlas Copco Cop 1838ex

BE

T45

730

60

10.2

T45*8D60-730

823-02105-73-202

7305-3826-02 / 90516304




BE

T51

730

60

10.4

T51*8D60-730

824-02105-73-202

/ 90516316

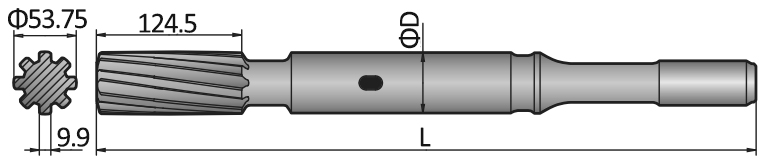

Atlas Copco COP 1840

App.

Thread

Length

Diameter

Weight

Model No.

Part No.

Similar Product Part No.










Atlas Copco Cop 1840

BE

T45

565

52

6.8

T45*8D52-565

823-02106-56-202

7305-3690-02 / 90516128




BE

T51

565

52

7.2

T51*8D52-565

824-02106-56-202

7306-3690-03 / 90516129

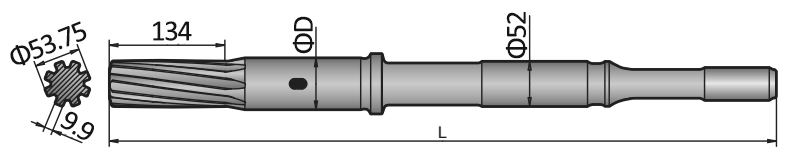

Atlas Copco COP 1840EX

App.

Thread

Length

Diameter

Weight

Model No.

Part No.

Similar Product Part No.




[mm]

[mm]

[kg]



Sandvik / Atlas Copo

Atlas Copco Cop 1840ex

BE

T45

770

60

10.8

T45*8D60-770

823-02107-77-202

90516305




BE

T51

770

60

10.9

T51*8D60-770

824-02107-77-202

90516317

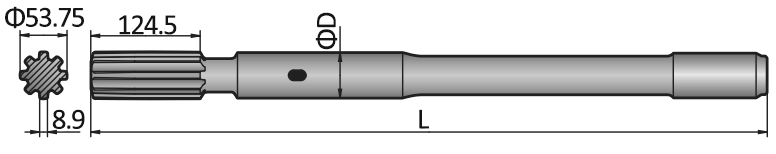

Atlas Copco COP 2150, COP 2550

App.

Thread

Length

Diameter

Weight

Model No.

Part No.

Similar Product Part No.




[mm]

[mm]

[kg]



Sandvik / Atlas Copo

Atlas Copco Cop 2150, Cop 2550

BE

T51

770

52

9.9

T51*8D52-770

824-0251-77-202

7306-3692-01 / 90516000

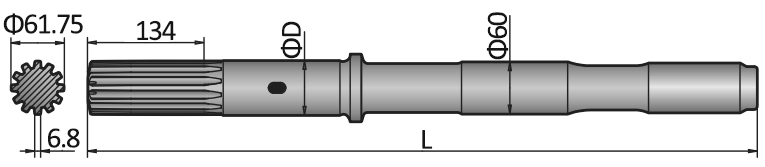

Atlas Copco COP 2160EX, COP 2560EX

App.

Thread

Length

Diameter

Weight

Model No.

Part No.

Similar Product Part No.




[mm]

[mm]

[kg]



Sandvik / Atlas Copo

Atlas Copco Cop 2160ex, Cop 2560ex

BE

T51

770

63

13.3

T51*12D63-770

824-02147-77-202

7306-3699-01 / 90516048

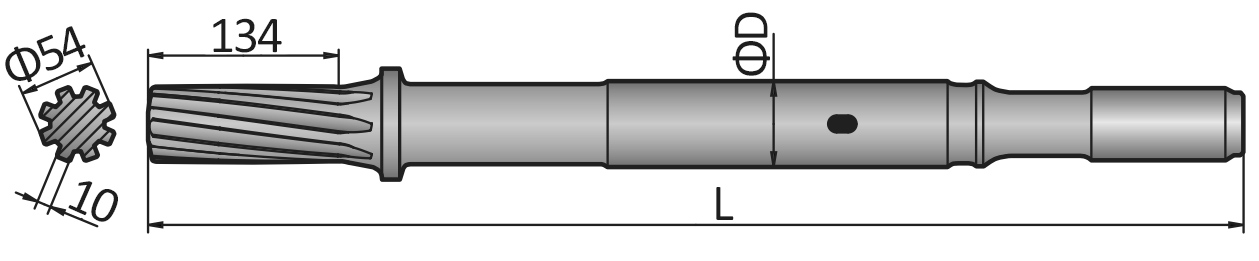

Atlas Copco COP 2550UX

App.

Thread

Length

Diameter

Weight

Model No.

Part No.

Similar Product Part No.




[mm]

[mm]

[kg]



Sandvik / Atlas Copo

Atlas Copco Cop 2550ux

PD

T45

770

60

12.9

T45*8D60-770

823-02116-77-202

90516030




PD

T51

770

60

13.1

T51*8D60-770

824-02116-77-202

90516041

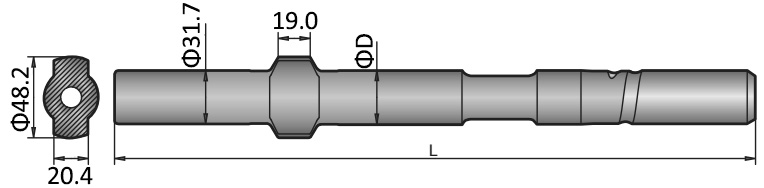

Atlas Copco BBC 43, BBC 44, BBC 45, BBC 100

App.

Thread

Length

Diameter

Weight

Model No.

Part No.

Similar Product Part No.




[mm]

[mm]

[kg]



Sandvik / Atlas Copo

Atlas Copco Bbc 43, Bbc 44, Bbc 45, Bbc 100

DT

R32

380

32

2.1

R32*2D32-380

805-0233-38-202

7803-3100-30 / 90515858

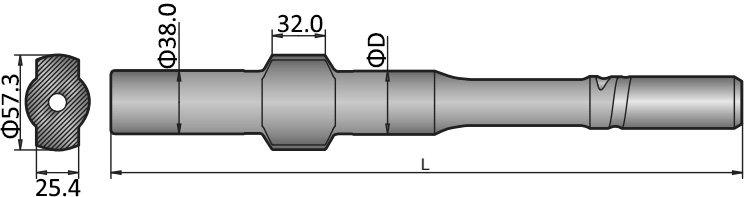

Atlas Copco BBC 51, BBC 52, BBC 54, BBC 120

App.

Thread

Length

Diameter

Weight

Model No.

Part No.

Similar Product Part No.




[mm]

[mm]

[kg]



Sandvik / Atlas Copo




DT

R32

380

38

2.6

R32*2D38-380

805-0234-38-202

7803-4200-30 / 90516156

Atlas Copco Bbc 51, Bbc 52, Bbc 54, Bbc 120

DT

R38

390

38

3.1

R38*2D38-390

807-0234-39-202

90516168




DT

T38

390

38

3.1

T38*2D38-390

822-0234-39-202

7304-4200-30 / 90516180

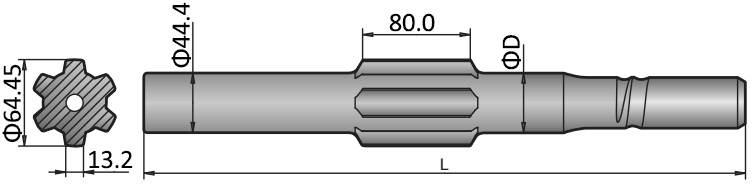

Atlas Copco BBE 57

App.

Thread

Length

Diameter

Weight

Model No.

Part No.

Similar Product Part No.




[mm]

[mm]

[kg]



Sandvik / Atlas Copo




BE

R38

447

45

5.0

R38*6D45-447

807-0235-45-202

90516276

Atlas Copco Bbe 57

BE

T38

540

45

5.3

T38*6D45-540

822-0235-54-202

90516287




BE

T45

550

45

5.9

T45*6D45-550

823-0235-55-202

90516303



Can't find the shank adapter you want? Please contact us! ↓
