T45 89MM Button Drill Bits Hard Rock Drilling Mining Tools

Product Details：

Product Name: T45 89mm Button Bit

Place of Origin: China

Brand Name: LITIAN

Certification: ISO9001:2015

Model No.: T45-8913ZCP

Category: Button Bit



Product Description

To improve the efficiency of top hammer drilling tools for drilling hard rock, and help users reduce costs, Litian's production technical team continues to conduct research and development in materials and manufacturing processes. Our hard rock drilling tools can improve efficiency, productivity and overall profitability for all rock drilling operations.

Litian hard rock drilling tools are very effective in drilling a variety of solid rocks such as quartzite, basalt, granite and more.

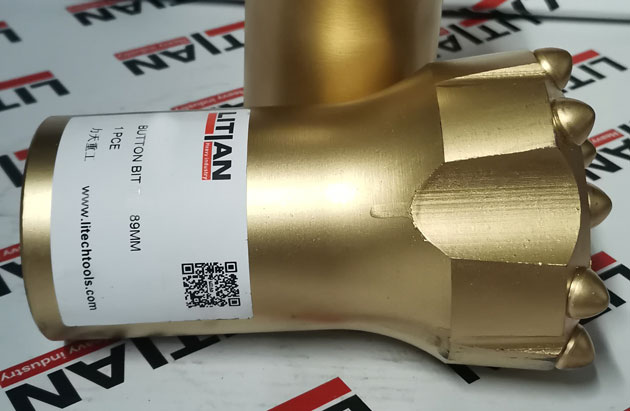

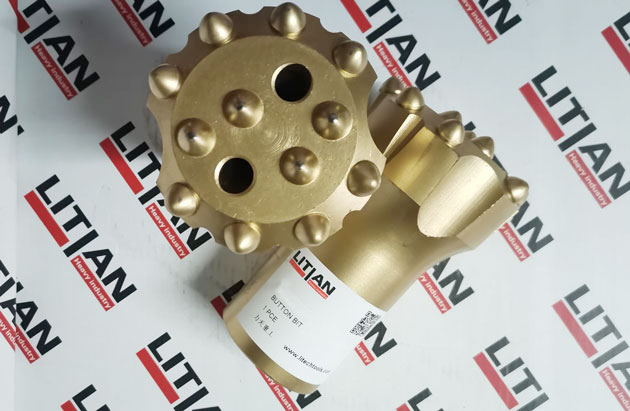

The T45 89MM button bit with flat face is a commonly used hard rock drilling bit, and is one of our most popular bits.

Product	T45-89mm Button bit
Diameter	^[mm]89MM ^[in] 3 1/2"
Buttons	Gauge: 8×13mm, Front: 4×12mm Gauge: 8×13mm, Front: 5×12mm
Flushing Hole Qty	Gauge: 2, Front: 2
Net Weight	～3.7kg
Button Shape	Ballistic, Spherical, Composite buttons
Face Design	Flat face
Model No.	T45-8912ZCP1, T45-8913ZCP
Similar Parts No.	7515-1889-R48 7515-1889-S48 90513752 90510692

More Hard Rock Drill Bits

In addition to the hard rock drill bits-T45 button bit introduced above, we can supply various types of top hammer hard rock mining tools (drilling bits, drill rods, shank adapter for drill, coupling sleeves).

We have the best drill bits for hard rock. Here are a variety of hard rock drill bit for option.

Thread: R32, R35, R38, T38, T45, T51, GT60, ST58, ST68...

Head Diameter: 41mm, 45mm, 57mm, 64mm, 76mm, 89mm, 102mm, 115mm...

Skirt Design: Standard skirt, Retrac skirt, Straightrac type, Heavy duty skirt.
