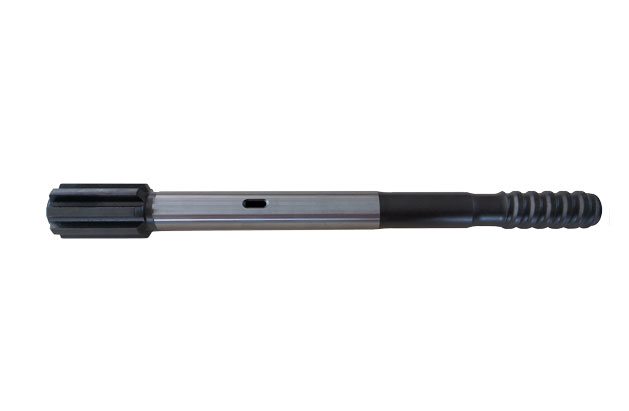

Shank Adapter
Shank Adapter Price

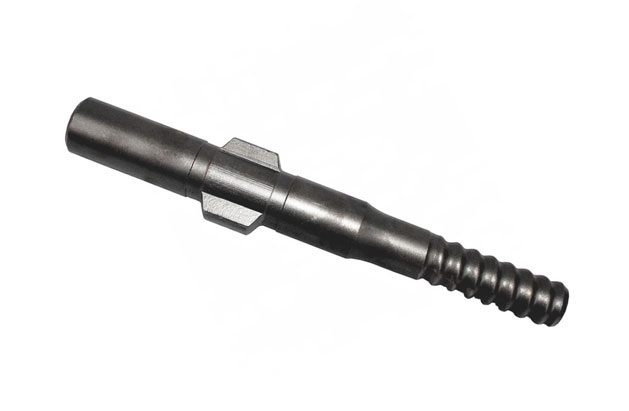

Threaded Shank Adapter

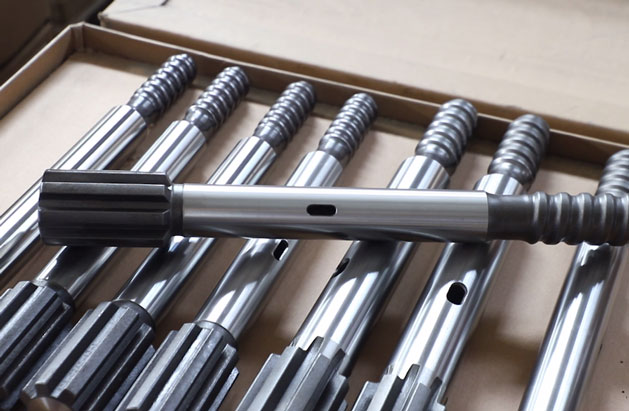

Drill Shank Adapter
Shank Adapter
Shank Adapter Price
Threaded Shank Adapter
Drill Shank Adapter

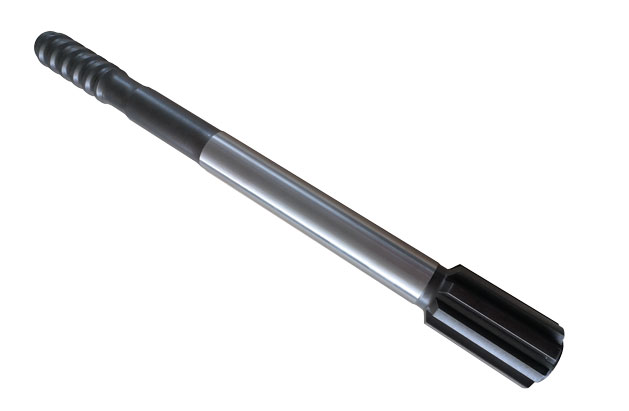

Shank Adapter HD/PD

Litian shank adapters use high-quality low-carbon alloy steel, and its alloy element ratio is accurate and reasonable, which can greatly improve the hardenability of the steel. We adopt advanced manufacturing technology and use precision instruments to straighten the shank adapters scientifically to ensure straightness and anti-irritability.


Our shank adapters (shank rods) are suitable for various brands of rock drills, such as Furukawa rock drills: HCR180, PD200, HD150, HD190, HD210, HD300, HD500, HD609/HD609R, HD612/HD612R, HD615, HD709, HD712, HD715 rock drill, etc.


We can also design and produce various specifications of rock drill shank adapters according to your needs.


Specification Of Shank Adapter

Furukawa

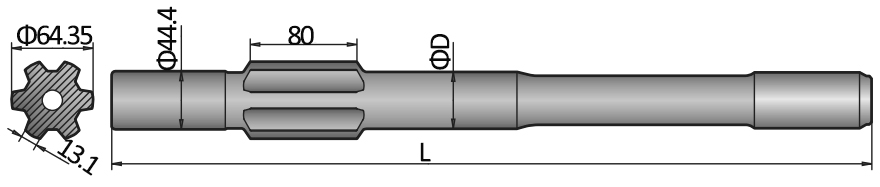

Furukawa HD300

App.

Thread

Length

Diameter

Weight

Model No.

Part No.

Similar Product Part No.




[mm]

[mm]

[kg]



Sandvik / Atlas Copo

Furukawa Hd300

DT

T38

655

45

6.0

T38*6D45-655

822-0357-65-202

90516388




DT

T45

655

45

6.7

T45*6D45-655

823-0357-65-202

90502638

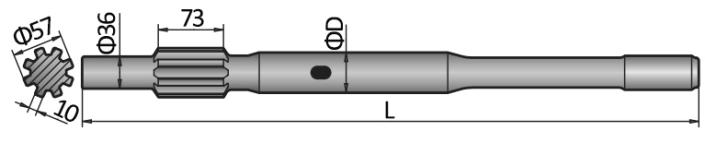

Furukawa HD609

App.

Thread

Length

Diameter

Weight

Model No.

Part No.

Similar Product Part No.




[mm]

[mm]

[kg]



Sandvik / Atlas Copo




BE

T38

690

45

6.5

T38*8D45-690

822-0358-69-202

7304-4780-01 / 90516197

Furukawa Hd609

BE

T45

620

45

6.2

T45*8D45-620

823-0358-62-202

7305-4791-01 / 90510276




BE

T45

690

45

6.8

T45*8D45-690

823-0358-69-202

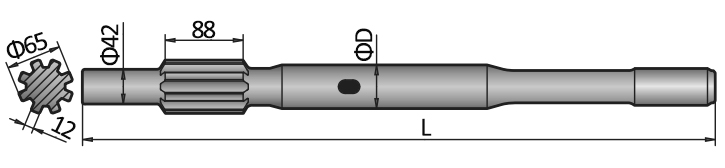

Furukawa HD612

App.

Thread

Length

Diameter

Weight

Model No.

Part No.

Similar Product Part No.




[mm]

[mm]

[kg]



Sandvik / Atlas Copo

Furukawa Hd612

BE

T45

710

51

8.7

T45*8D51-710

823-0359-71-202

7305-7414-01




BE

T51

710

51

9.7

T51*8D51-710

824-0359-71-202

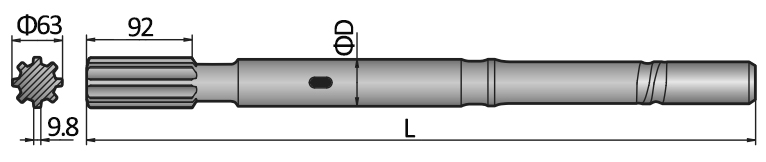

Furukawa HD709

App.

Thread

Length

Diameter

Weight

Model No.

Part No.

Similar Product Part No.




[mm]

[mm]

[kg]



Sandvik / Atlas Copo




BE

T38

590

45

6.0

T38*8D45-590

822-0360-59-202


Furukawa Hd709

BE

T45

590

45

6.4

T45*8D45-590

823-0360-59-202




BE

T38

620

45

6.1

T38*8D45-620

822-0360-62-202

7304-7426-01 / 0000000



BE

T45

620

45

6.5

T45*8D45-620

823-0360-62-202

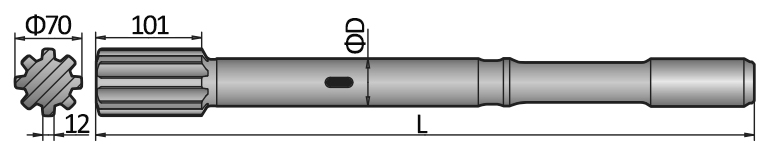

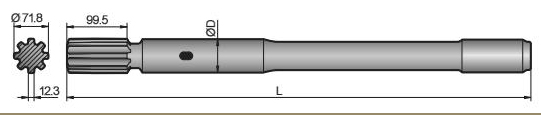

Furukawa HD712

App.

Thread

Length

Diameter

Weight

Model No.

Part No.

Similar Product Part No.




[mm]

[mm]

[kg]



Sandvik / Atlas Copo




BE

T45

590

51

8.7

T45*8D51-590

823-0361-59-202


Furukawa Hd712

BE

T45

790

51

10.5

T45*8D51-790

823-0361-79-202

7305-7417-01




BE

T51

790

51

10.7

T51*8D51-790

824-0361-79-202

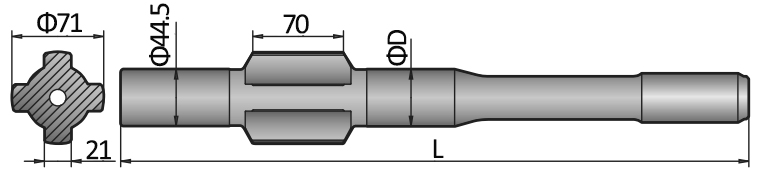

Furukawa PD 200

App.

Thread

Length

Diameter

Weight

Model No.

Part No.

Similar Product Part No.




[mm]

[mm]

[kg]



Sandvik / Atlas Copo

Furukawa Pd 200

BE

T38

380

44.5

4.2

T38*4D44-380

822-0355-38-202

7304-7543-60 /




DT

T38

485

44.5

4.8

T38*4D44-485

822-0355-48-202

                       90516024



Can't find the shank adapter you want? Please contact us! ↓
